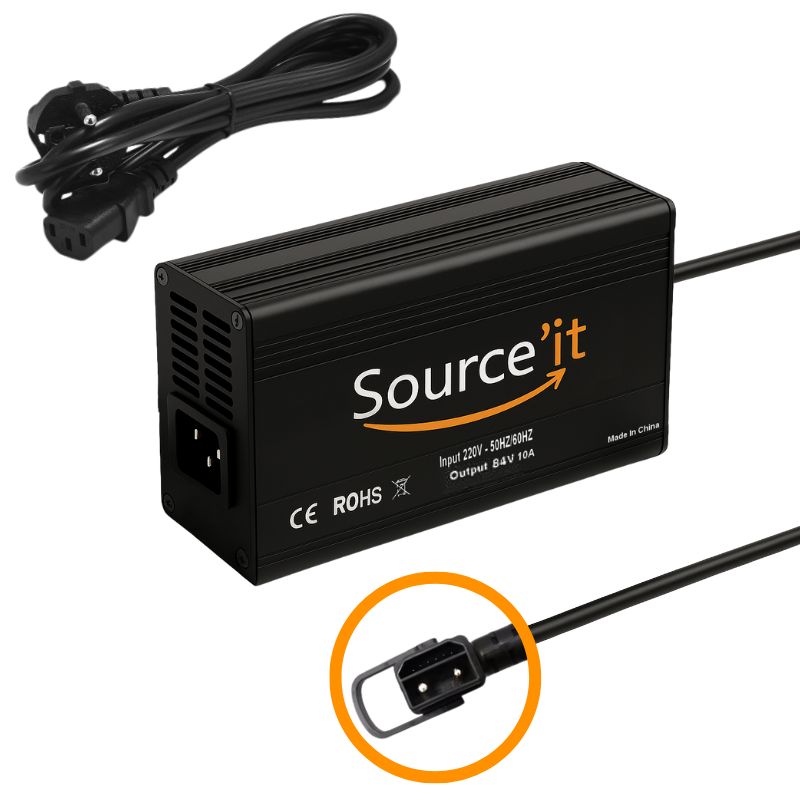

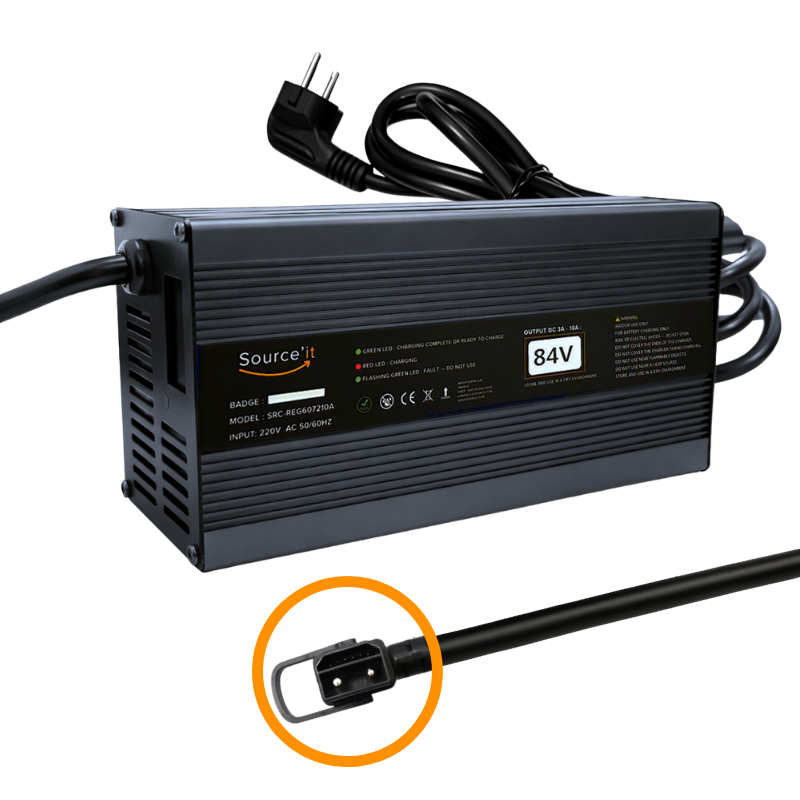

Adjustable 72V – 84V Charger (3A to 10A) for DAYI E-ODIN / E-ODIN 2.0 / PRO Electric Motorcycle

Replace the original charger of your DAYI E-ODIN electric motorcycle with an adjustable Source'IT 72 V – 84 V from 3A to 10A model. This charger retains the characteristics of the original model while offering superior manufacturing quality, better reliability, and, most importantly, intelligent charge current management.

When charging overnight and you're not in a hurry, you can quietly recharge at 3A or 5A, and when you need to charge faster, you can go up to 10A, which is equivalent to the original charger. The ability to adapt the charging current also helps to preserve battery life in the long term.

This model also corrects frequent flaws of original chargers: flashing green LED, tripping circuit breaker, or charging that no longer starts.

Its integrated OLED screen displays in real-time the charged capacity, battery voltage, and selected current. Adjustment is easily done via a rotary knob, for intuitive and precise use.

⚠️ Not compatible with versions equipped with a Type 2 plug (public charging station or onboard charger). For these models, please contact us directly.

---

🔧 Technical Specifications

• Output Voltage: 84V (72 V – 20S lithium-ion battery)
• Charging Current: adjustable from 3A to 10A
• Maximum Power: 840 W

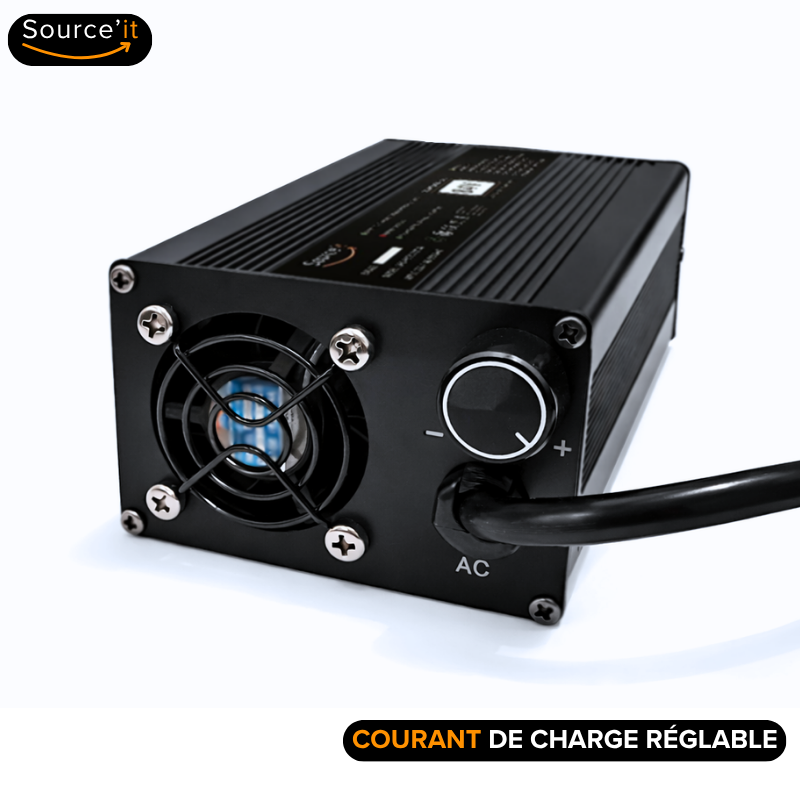

• Adjustment: rotary knob

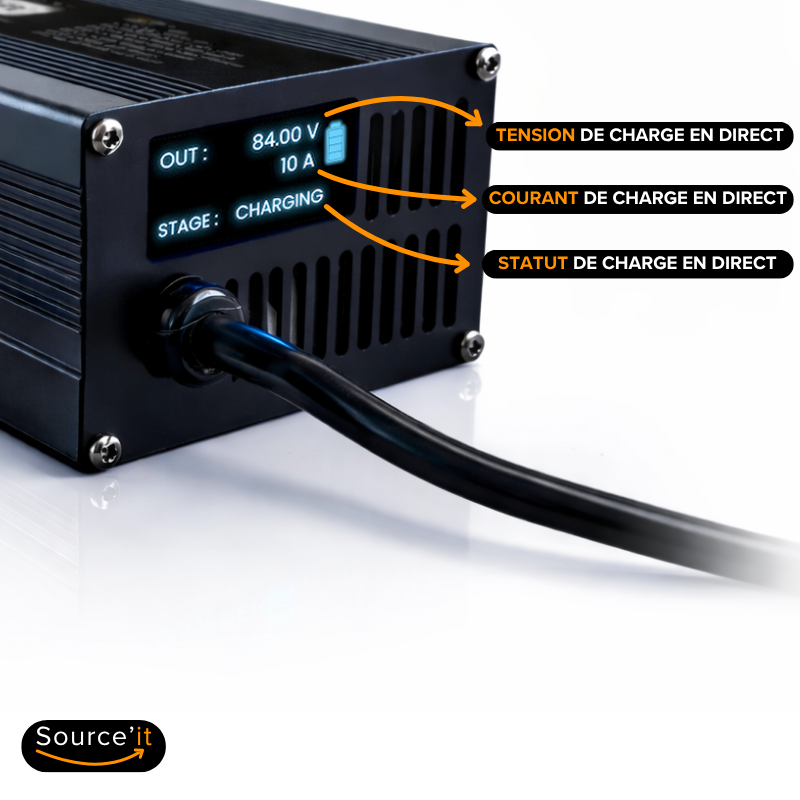

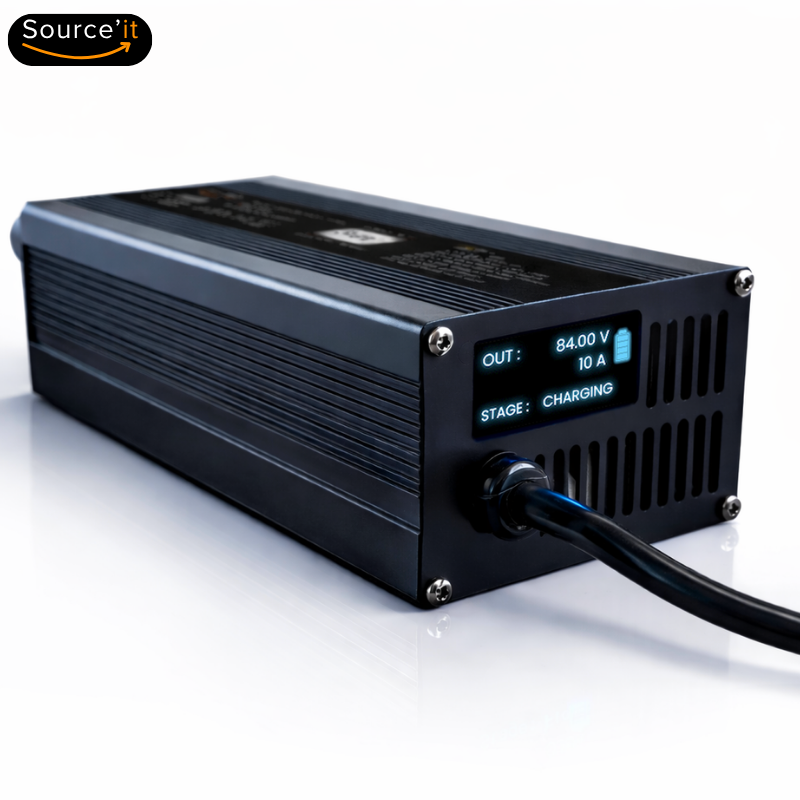

• Display: OLED screen (capacity, voltage, current)
• Compatible Battery Type: 72 V lithium-ion (E-ODIN 1.0, 2.0 LITE, 2.0 PRO, PRO)

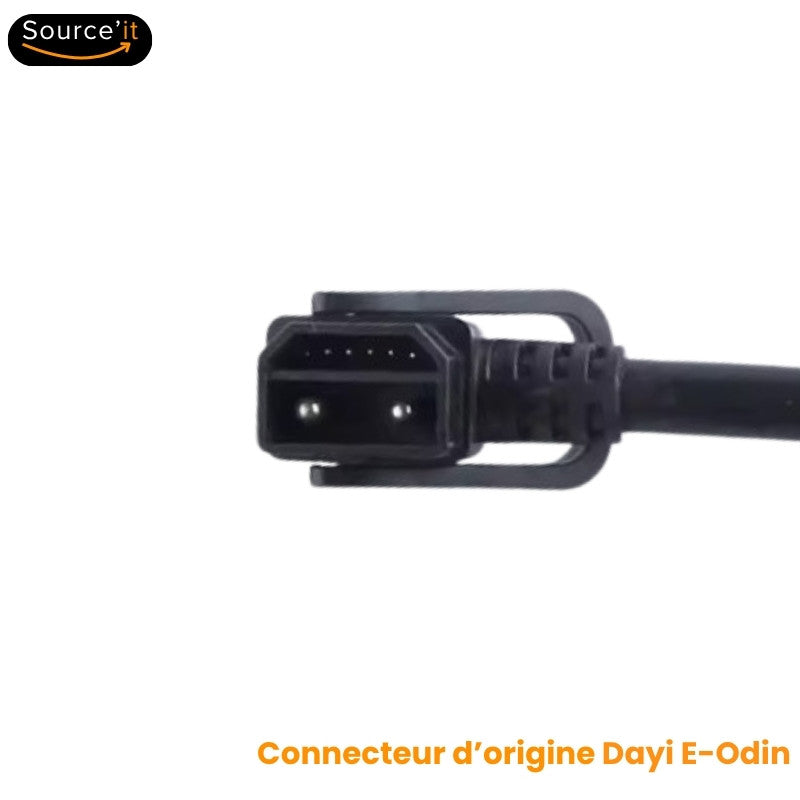

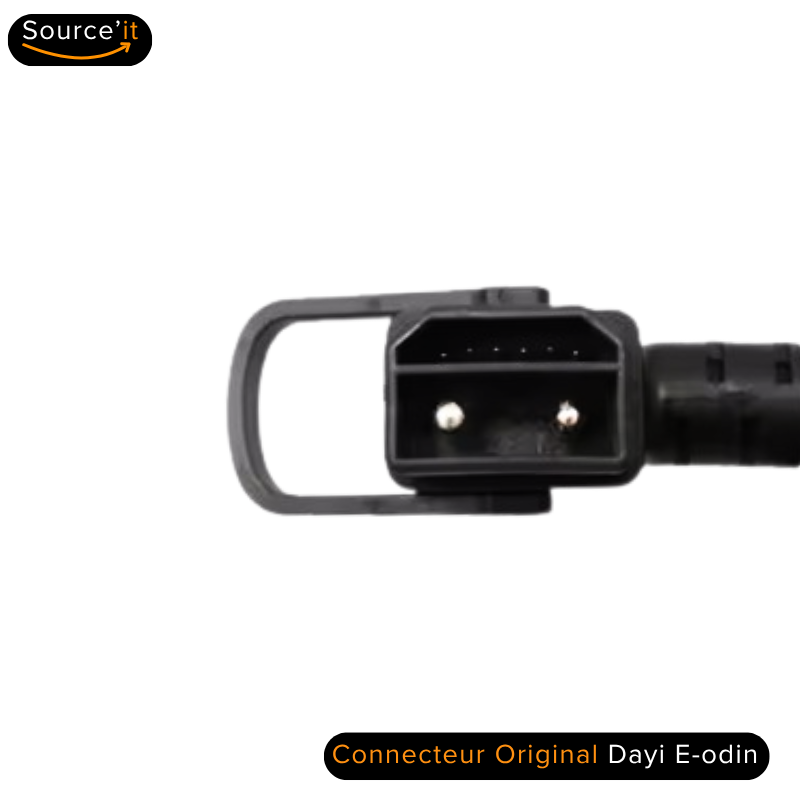

• Connector: original Dayi E-ODIN connector (2+6 pins)
• Cooling: active – ventilation + aluminum heat sink casing
• Protections: overvoltage, overcharge, reverse polarity, overheating, short circuit

---

⏱️ Estimated Charging Time

Model	Battery Capacity	3A	5A	10A
DAYI E-ODIN 1.0	72 V / 50 Ah	≈ 16h	≈ 10h	≈ 5h
DAYI E-ODIN 2.0 LITE	72 V / 100 Ah	≈ 32h	≈ 20h	≈ 10h
DAYI E-ODIN 2.0 PRO	72 V / 120 Ah	≈ 40h	≈ 24h	≈ 12h
DAYI E-ODIN PRO	72 V / 120 Ah	≈ 40h	≈ 24h	≈ 12h

---

💡 Why choose the Source’IT adjustable charger?

• ✅ Smart adjustment: 3A (slow), 5A (standard), 10A (equivalent to original)
• ✅ Battery preservation: adapt power according to your needs
• ✅ Correction of OEM defects: enhanced reliability
• ✅ Grade A electronic components
• ✅ Efficient active ventilation limiting heat buildup
• ✅ OLED screen: real-time monitoring

---

⚙️ Performance & Safety

Each Source'IT charger is calibrated to deliver a stable voltage of 84 V. Active cooling maintains a constant temperature, even during prolonged charging. All protections are integrated to ensure reliable and safe use.

---

💨 Source’IT Advantages

• ✅ Robust and ventilated aluminum casing
• ✅ Stable and regulated charging (CC/CV)
• ✅ Individually tested product
• ✅ 2-year warranty
• ✅ CE / RoHS compliant

---

💡 Compatibility

• ✅ DAYI E-ODIN 1.0 – 72 V / 50 Ah
• ✅ DAYI E-ODIN 2.0 LITE – 72 V / 100 Ah
• ✅ DAYI E-ODIN 2.0 PRO – 72 V / 120 Ah
• ✅ DAYI E-ODIN PRO – 72 V / 120 Ah

⚠️ Incompatible with Type 2 versions or onboard charger.

---

❓ FAQ – Adjustable 72 V DAYI E-ODIN Charger

➡️ Does this charger replace the original one?

Yes ✅, with the same performance at 10A, but with superior reliability.

➡️ Is 10A considered fast charging?

No, it corresponds to the original power. The 3A and 5A modes allow for gentler charging.

➡️ Is adjustment complicated?

No, it's done simply via a rotary knob.

➡️ Why do original chargers fail?

Mainly due to poor heat dissipation and low-quality components.

➡️ Can I use it on a Type 2 charging station?

No ❌, this charger only works with a 220V mains socket.

---

📩 Support

Need advice or compatibility verification? 👉 contact@source-it.fr or 📞 +33 6 49 95 09 76

*Non-contractual photos – Source’IT.
