Talaria TL5500 MX5 Charger 72V-84V 10A (Original Battery)
Talaria TL5500 MX5 Charger 72V-84V 10A (Original Battery)
Couldn't load pickup availability
Talaria 5500 Adjustable Charger – 72V (84V) – 3A to 10A with OLED Screen (FOR ORIGINAL BATTERY)
The 72V – 3A to 10A adjustable charger for Talaria 5500 is specially designed for the Talaria 5500 equipped with its original 72V 40Ah battery. It allows for stable, secure, and perfectly adapted charging to the 72V architecture of this high-performance electric motorcycle.
When charging overnight and not in a hurry, you can charge quietly at 3A or 5A, and when you need to charge faster, you can go up to 10A. Even though the Talaria 5500 comes standard with a 15A charger, the ability to adapt the charging current helps to further preserve battery life on a daily basis, while still allowing for fast charging when needed.
Thanks to its aluminum casing with active ventilation and quality electronics, this charger delivers a perfectly regulated 84V voltage, limiting heat and ensuring excellent reliability.
Its integrated OLED screen displays the charged capacity, battery voltage, and selected current in real-time. Adjustment is made via a rotary knob, simple and precise.
🏍️ Compatible Talaria Motorcycle
- Talaria 5500 – original 72V 40Ah lithium-ion battery
The Talaria 5500 operates on a 72V (20S) architecture with a final charge voltage of 84V.
🔧 Technical Specifications
- Output Voltage: 84 V (72 V Li-ion battery – 20S)
- Charging Current: adjustable from 3A to 10A
- Adjustment: rotary knob
- Display: OLED screen (capacity, voltage, current)
- Compatible Battery Type: 72 V lithium-ion
- Battery Capacity: 40Ah

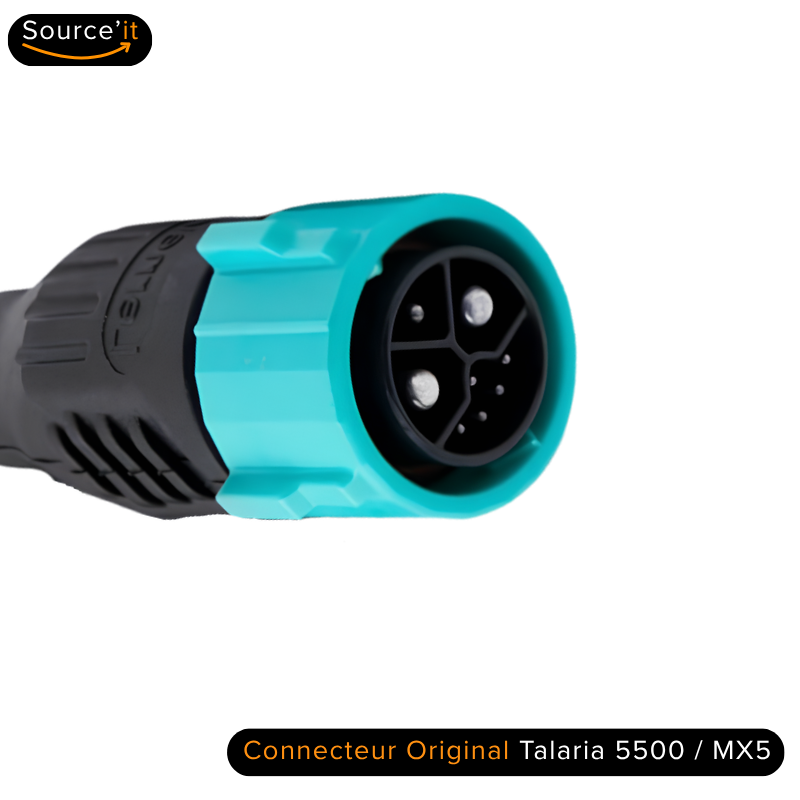

- Connector: compatible with original Talaria 5500 connector
- Cooling: active – ventilation + aluminum heatsink casing
- Protections: overcharge, short circuit, reverse polarity, overheating
⏱️ Estimated Charging Time
-
Talaria 5500 – 72V 40Ah battery
→ 3A: ~13h
→ 5A: ~8h
→ 10A: ≈ 4h00
Charging times may vary depending on temperature, battery condition, and the final BMS balancing phase.
💡 Why choose this adjustable Talaria 5500 charger?
✔️ Smart adjustment: 3A (slow), 5A (standard), 10A (fast).
✔️ Battery preservation: adapt power according to your use.
✔️ OLED screen: real-time charging monitoring.
✔️ Adjustment knob: simple and precise.
✔️ Active cooling: limits heating.
✔️ Ideal alternative to the original 15A charger for those who want a softer and adjustable charge.
🔒 Safety and compatibility
Is this charger safe for the Talaria 5500?
Yes. A 10A charge represents approximately 0.25C for a 72V 40Ah battery, which is perfectly suitable for a modern lithium-ion battery. The adjustment also allows for a gentler charge at 3A or 5A to prioritize battery longevity.
Tip: allow the battery to cool for 30 to 60 minutes after use before charging at 10A.
❓ FAQ – Talaria 5500 72V Adjustable Charger
Is this charger compatible with the original Talaria 5500?
Yes, this charger is designed for the Talaria 5500 equipped with its original 72V 40Ah lithium-ion battery with a final charge voltage of 84V.
Why choose a 10A adjustable charger when the original charger is 15A?
The adjustable charger allows you to adapt the charging current to your needs. A gentler charge at 3A or 5A can help limit heating and further preserve the battery in the long run, while still allowing for fast charging at 10A when necessary.
How long does it take to fully charge the battery?
For a 72V 40Ah battery, count approximately 4h30 at 10A, approximately 8h at 5A, and approximately 13h at 3A. The 15A charger, on the other hand, recharges the battery in about 3 hours.
Does the charger have an active cooling system?
Yes. The charger has active ventilation combined with an aluminum heatsink casing to maintain a stable temperature during charging.
📩 Need advice or compatibility verification? Contact us directly.
