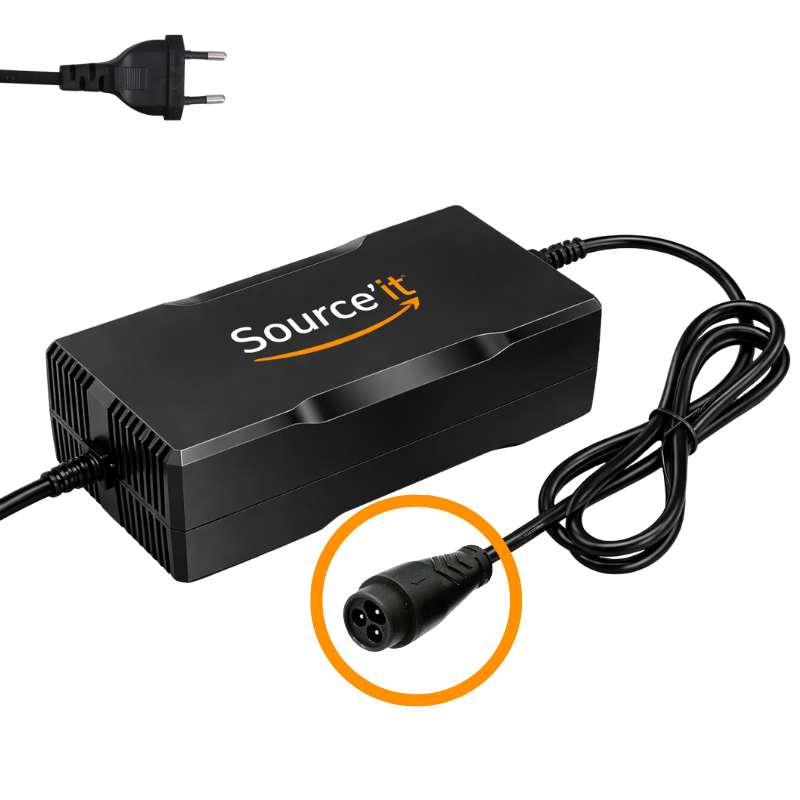

🔌 Dualtron Mini Fast Charger – 52V (58.8V – 4A) – Original Minimotors LP16 Connector

Fast charger for Dualtron Mini – 52V (58.8V)

This 52V – 4A fast charger is specially designed for the Dualtron Mini electric scooter. It delivers a precise charging voltage of 58.8V, perfectly suited for the 52V (14S lithium-ion) batteries used on this model.

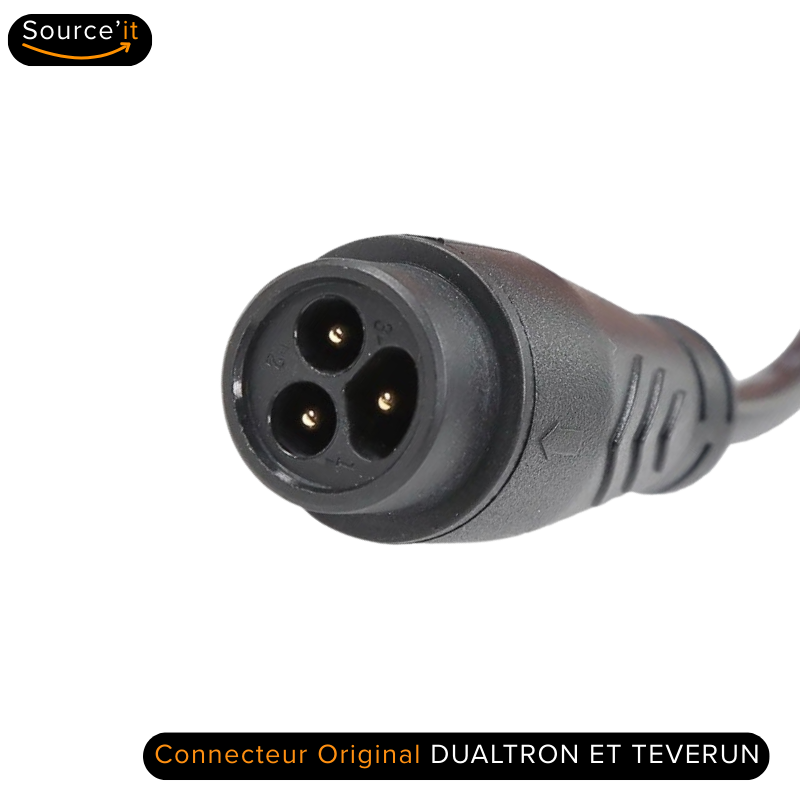

Thanks to its original Minimotors LP16 – 3-pin connector, this charger plugs directly into the Dualtron Mini and guarantees perfect compatibility with the scooter's charging system.

With a charging power of 4A, this charger allows for significantly faster charging than a standard charger. It is ideal for users who want to quickly regain battery life between two trips or significantly reduce their scooter's charging time.

This model features a ventilated plastic charging block with active ventilation that maintains a stable temperature throughout the charging process. This cooling system effectively limits internal heating and helps improve the charger's reliability and longevity.

The electronic charge management is based on CC / CV (constant current / constant voltage) technology, ensuring progressive, stable, and perfectly secure charging for your Dualtron Mini's lithium-ion battery.

---

🔧 Technical Specifications

• Output voltage: 58.8V (for 52V – 14S lithium-ion batteries)
• Charging current: 4A – fast charge
• Connector: LP16 – original Minimotors 3-pin
• Compatibility: Dualtron Mini – 52V / 13Ah, 17.5Ah and 21Ah
• Dualtron Mini charging time:
• 🔋 52V 13Ah battery → ≈ 3h15
• 🔋 52V 17.5Ah battery → ≈ 4h20
• 🔋 52V 21Ah battery → ≈ 5h15
• Cooling: active ventilation – ventilated plastic housing
• Integrated protections: overvoltage, overcurrent, short circuit, reverse polarity, overheating
• LED indicator: red = charging / green = full battery

---

💡 Compatibility

This charger is compatible with Dualtron and Teverun scooters equipped with 52V (14S lithium-ion) batteries and an LP16 – 3-pin connector, including:

• Dualtron Mini – 52V 13Ah
• Dualtron Mini – 52V 17.5Ah
• Dualtron Mini – 52V 21Ah

The electrical characteristics perfectly match those of the original Minimotors charger while allowing for faster and more secure charging.

---

⚙️ Why choose a Source’IT charger?

• 4A fast charge significantly reducing charging time
• Active ventilation limiting heat during charging
• Perfect compatibility with Dualtron Mini
• Superior design quality compared to standard chargers
• Complete electronic protections
• Product individually tested before shipping
• Fast shipping within 24–48 hours

---

📦 Warranty & Shipping

Warranty: 2 years – new charger tested before shipping.

Shipping: within 24 / 48 hours in France and Europe with tracking number.

---

❓ FAQ – Dualtron Mini 52V 4A Fast Charger

➡️ Is this charger compatible with my Dualtron Mini?

Yes. This charger is designed for the 52V (14S lithium-ion) batteries of the Dualtron Mini and uses the original Minimotors LP16 connector.

➡️ Is fast charging dangerous for the battery?

No. The Dualtron Mini accepts fast charging up to 5A. This 4A charger respects the BMS charging parameters and uses CC/CV management, ensuring stable and secure charging.

➡️ Why choose a ventilated charger?

Ventilated chargers dissipate heat better and maintain a stable temperature during charging. This improves the reliability and lifespan of the charger.

➡️ What is the difference between a 2A and 4A charger?

The 2A charger is the standard charger with a longer charging time.

The Source’IT 4A fast charger can reduce charging time by approximately half, which is ideal for quickly regaining battery life.

---

📩 Support

Need compatibility verification? 👉 contact@source-it.fr

*Non-contractual photos – Source’IT.
