Fast Charger Electric Scooter Rider 5000 72V-84V 10A

⚡ Adjustable Charger for Rider 5000W Electric Scooter – 72V 3A to 10A with OLED Screen

The 72V 3A to 10A adjustable charger for the Rider 5000W electric scooter is designed for this 125cc equivalent model equipped with a removable 72V 63Ah lithium-ion battery. It offers fast, stable, and secure charging, perfectly adapted to the Rider 5000W's 72V architecture.

Thanks to its adjustable charging current from 3A to 10A, it adapts to all uses: When charging at night and you're not in a hurry, you can charge slowly at 3A or 5A, and when you have less time, you can increase it to a maximum of 10A for ultra-fast charging.

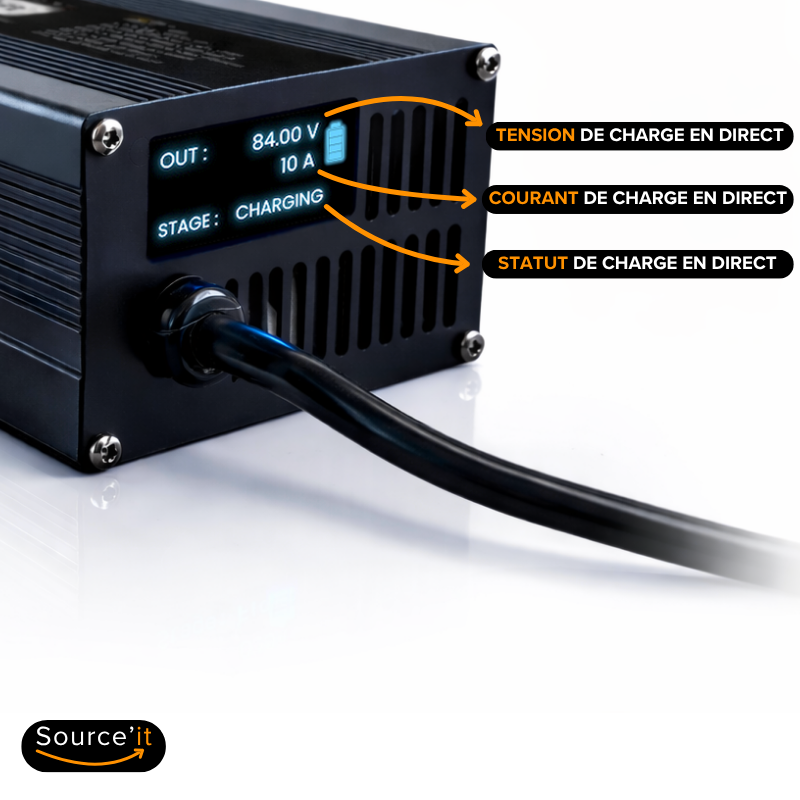

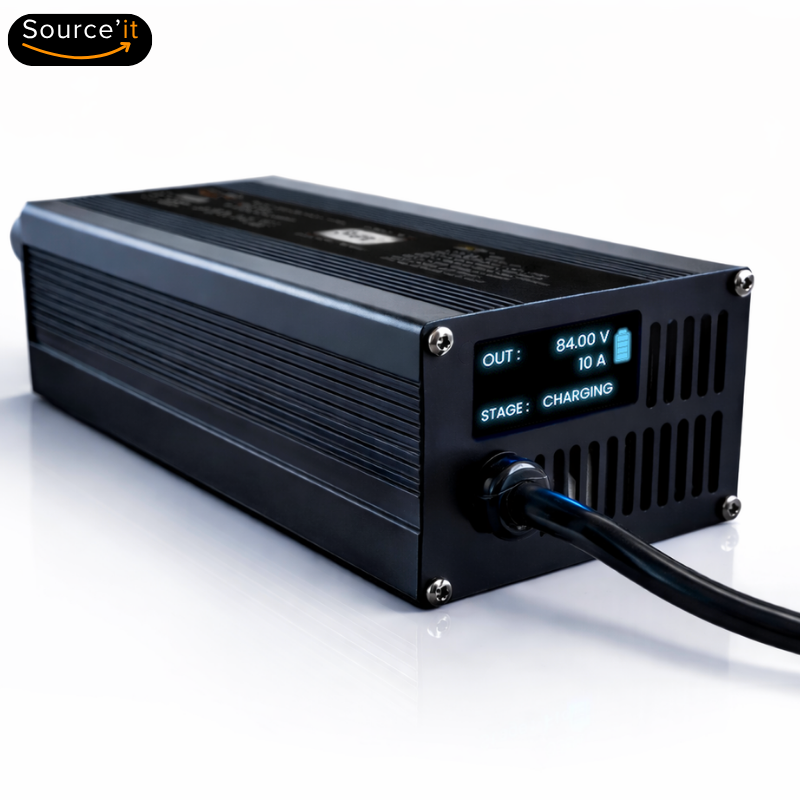

Its integrated OLED screen displays the charged capacity, battery voltage, and selected charging current in real time. Adjustment is simple via a rotary knob, for precise and intuitive control.

Thanks to its aluminum casing with active ventilation and quality electronics, this charger delivers a regulated voltage of 84V, limiting overheating and ensuring excellent long-term reliability.

---

🛵 Compatible Rider Scooter

Rider 5000W – 1x 72V 63Ah lithium battery (≈ 4.5 kWh)

The Rider 5000W operates on a 72V (20S) architecture with a nominal charging voltage of 84V. Its removable battery can be charged directly on the scooter or separately.

---

🔧 Technical Specifications

• Output Voltage: 84 V (72 V Li-ion battery – 20S)
• Charging Current: adjustable from 3A to 10A (up to 10A ultra-fast)

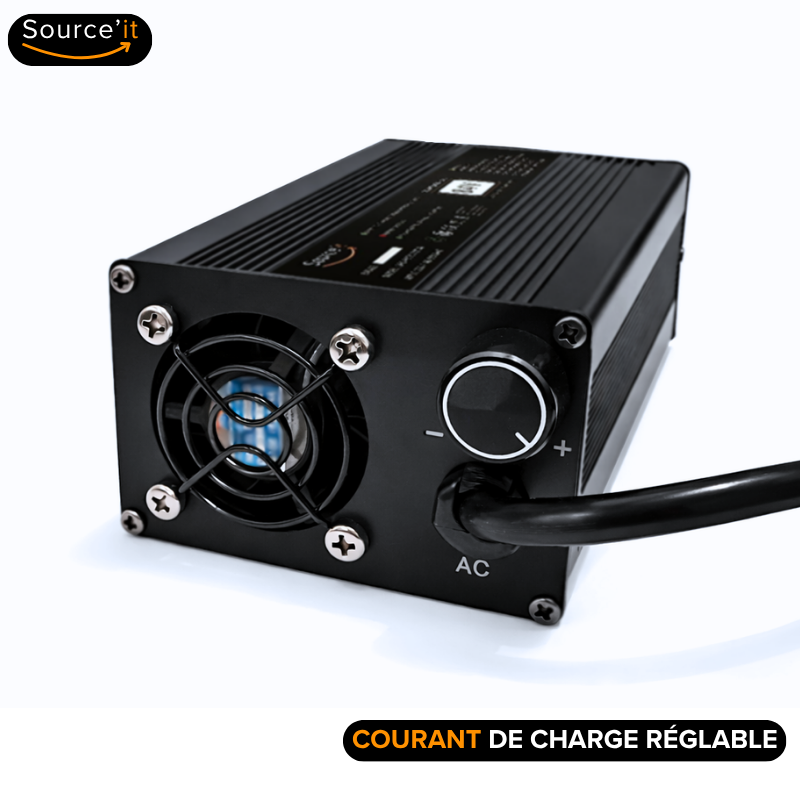

• Adjustment: rotary knob
• Display: OLED screen (capacity, voltage, current)
• Compatible Battery Type: 72 V Lithium-ion
• Battery Capacity: 63Ah

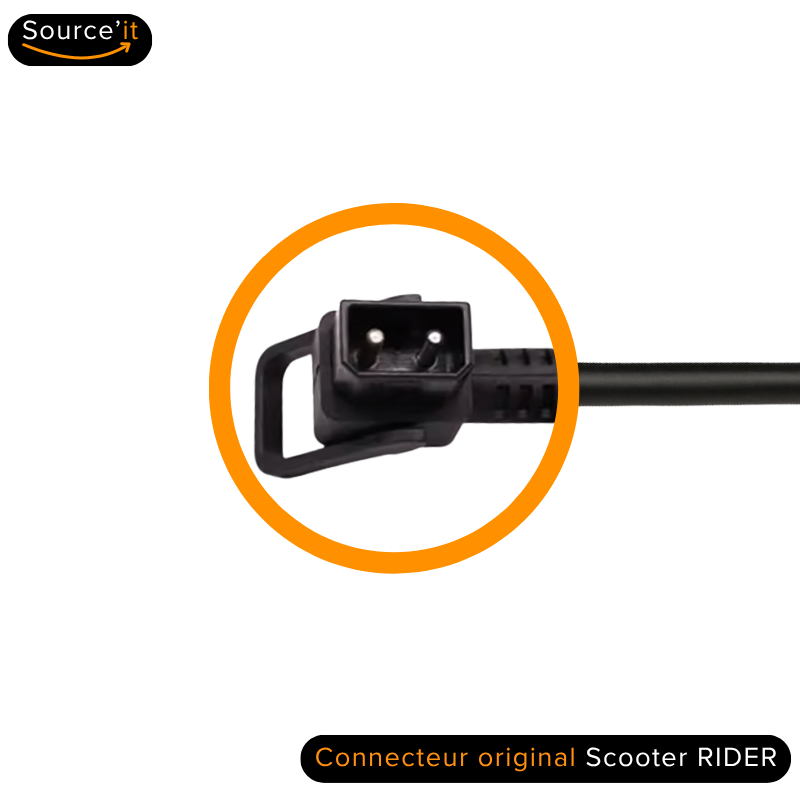

• Connectivity: Original Scooter Rider Connector
• Cooling: Active by ventilation – aluminum heat sink casing
• Integrated Protections: overcharge, short circuit, reverse polarity, overheating

---

⏱️ Charging Time

Rider 5000W – 72V 63Ah

• 3A → ~18 to 20 h
• 5A → ~10 to 12 h
• 10A → ~6 h (ultra-fast charge)

Charging times may vary depending on the discharge level, ambient temperature, and the final BMS balancing phase.

---

💡 Why choose this adjustable 72V Rider 5000W charger?

• Ultra-versatile: a single charger for slow and ultra-fast charging
• Ultra-fast charging: up to 10A to significantly reduce charging time
• Controlled charging: possibility to charge at 3A or 5A for gentler charging
• OLED screen: real-time monitoring of charge and battery
• Efficient cooling: ventilated aluminum casing
• Ideal replacement: main charger or upgrade from the original charger

---

🔒 Safety and compatibility

Is this charger safe for the Rider 5000W battery?
Yes. A current of 10A represents approximately 0.16C for a 72V 63Ah battery, which remains within a controlled fast-charging range for a lithium-ion battery. The adjustment allows you to adapt the power according to your needs.

The precise regulation, active ventilation, and integrated protections guarantee reliable, stable, and durable charging.

---

❓ FAQ – Adjustable 72V Rider 5000W Electric Scooter Charger

➡️ Is this charger compatible with the Rider 5000W?

Yes, it is specially designed for the 72V 63Ah lithium-ion batteries of the Rider 5000W.

➡️ Is it a fast charger?

Yes. At 10A, it allows for ultra-fast charging (~6h). You can also charge slower at 3A or 5A.

➡️ Is adjusting the current complicated?

No, it is very simply done via a rotary knob.

➡️ Does this charger damage the battery?

No. The adjustment allows you to adapt the charge to your usage, while remaining within safe values for a lithium-ion battery.

➡️ Does the charger comply with CE standards?

Yes, it is CE compliant and tested before shipment.

---

📩 Need advice or compatibility verification? Contact us, we will guide you to the most suitable solution.

*Non-contractual photos.
