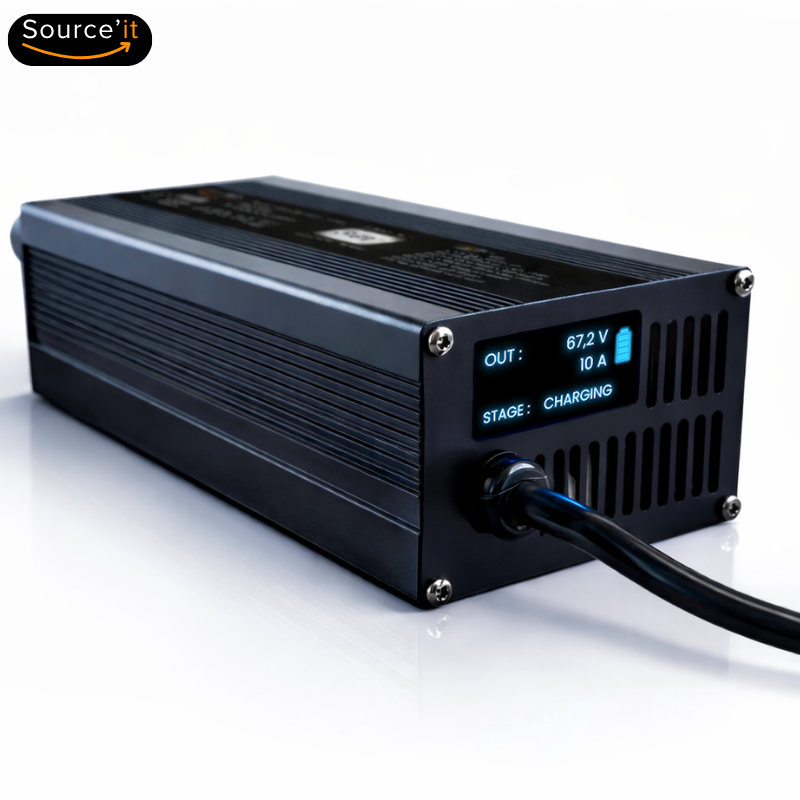

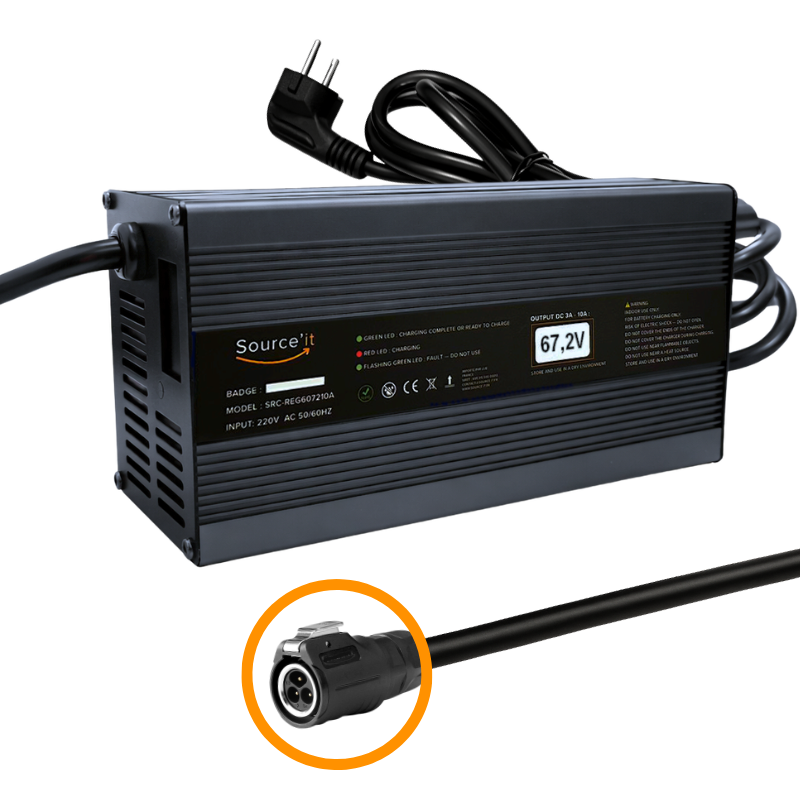

Teverun Tetra Fast Charger 60V-67.2V 10A LP16

Adjustable 60V 3A to 10A Ultra-Fast Charger – for Teverun Tetra (OLED screen + knob)

This adjustable 60V – 3A to 10A charger (67.2V output) is specially designed for the Teverun Tetra electric scooter.

Compatible with the 60V 60Ah (16S lithium-ion) battery, it allows for ultra-fast and adaptable charging while ensuring perfectly regulated voltage and secure charging.

When charging overnight and you're not in a hurry, you can charge slowly at 3A or 5A, and when you need to charge quickly, you can go up to 10A.

Being able to adapt the charging current also helps to preserve the battery's lifespan in the long term.

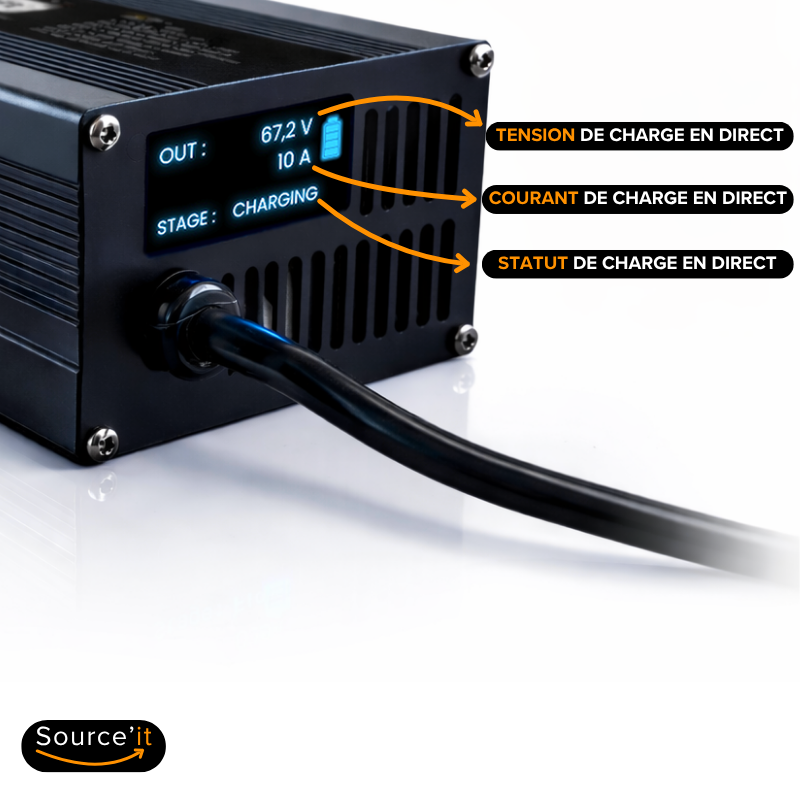

Its integrated OLED screen displays the charged capacity, battery voltage, and selected charging current in real-time. Adjustment is simply done via a rotary knob.

---

🔧 Technical Specifications

• Output Voltage: 67.2V (60V – 16S lithium-ion battery)
• Charging Current: adjustable from 3A to 10A

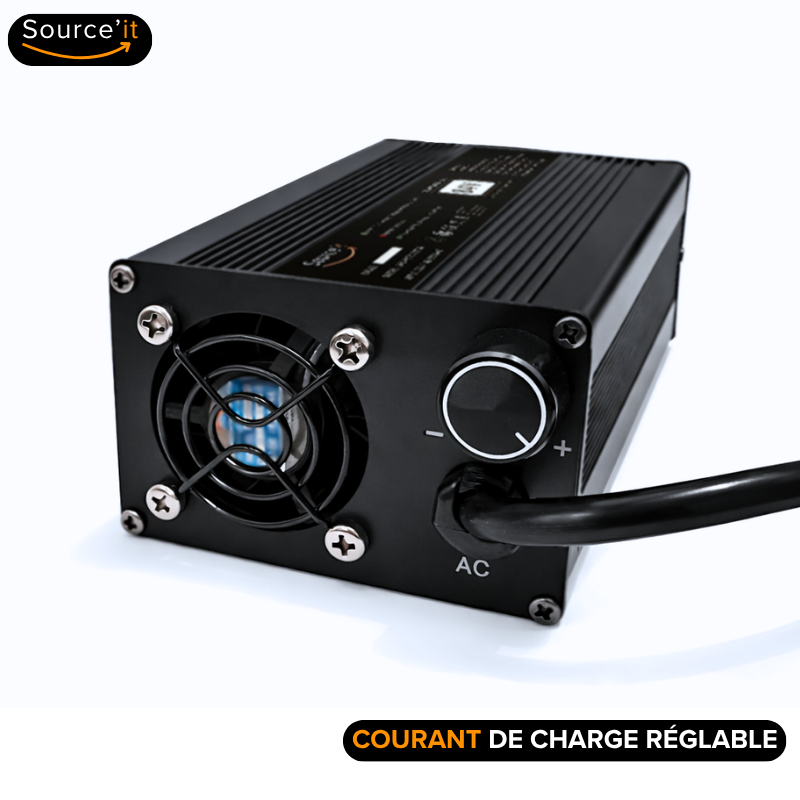

• Adjustment: rotary knob
• Display: OLED screen (capacity, voltage, current)

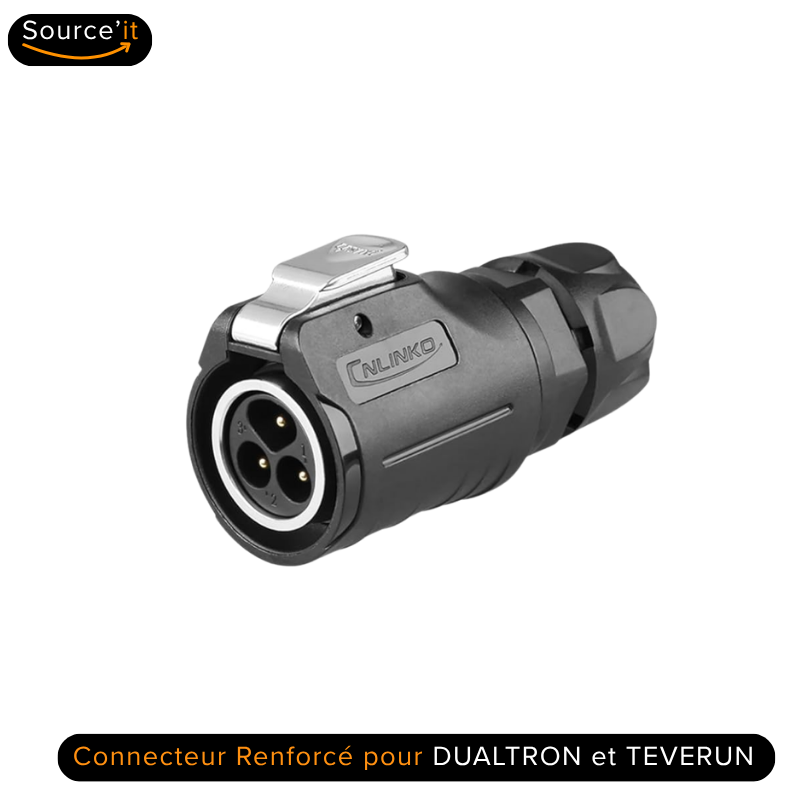

• Connector: LP16 – Teverun / Dualtron connector
• Estimated Charging Times:
  • 60V 60Ah Battery
    → 3A: ~20h
    → 5A: ~12h to 13h
    → 10A: ≈ 6h30
• Model Compatibility: Teverun Tetra
• Compatible Battery Type: 60V lithium-ion battery (16S)
• Cooling: active ventilation – aluminum casing
• Integrated Protections: overcharge, overheating, reverse polarity, short circuit

---

⚠️ Mandatory Use of the LP16 Dual Port Extension Cable for 10A Mode (Supplied with the charger)

The Teverun Tetra has two LP16 charging ports.

For 10A use, it is imperative to use an LP16 female to 2 LP16 male splitter extension cable (supplied with the charger) to distribute the charging current across the two original charging ports.

This configuration limits the current to approximately 5A per connector in order to:

• ✔️ Comply with the LP16 connectors' manufacturer specifications
• ✔️ Prevent any overheating of the charging ports
• ✔️ Preserve the original cable sections
• ✔️ Avoid blowing charging fuses
• ✔️ Secure ultra-fast charging at 8A to 10A

⚠️ When the charger exceeds 6.5A, it should never be used on a single charging port.

The extension cable thus allows for a clean and secure distribution of current between the scooter's two LP16 ports.

---

🔌 Connection Procedure

1. Connect the 2 LP16 male connectors of the extension cable to the 2 charging ports of the Teverun Tetra
2. Then connect the charger to the LP16 extension cable
3. Connect the charger to the wall socket
4. Then adjust the desired charging current via the knob

This method helps avoid charging current adjustment errors and thus prevents blowing fuses unnecessarily.

---

✅ Advantages of the adjustable 60V Teverun Tetra charger

✔️ Adjustable from 3A to 10A
✔️ 3A mode: slow charging ideal for overnight
✔️ 5A mode: excellent speed/comfort compromise
✔️ 10A mode: ultra-fast charging
✔️ Integrated OLED screen
✔️ Intuitive adjustment knob
✔️ Active ventilation greatly limiting heating
✔️ Aluminum heatsink casing
✔️ Much more compact and portable charger than some original fast chargers

Each unit is individually tested before shipping and comes with a 2-year warranty.

---

ℹ️ Additional Information

This adjustable 67.2V – 3A to 10A charger is perfectly suited for the 60V battery equipping the Teverun Tetra.

For ultra-fast charging at 8A to 10A, it is advisable to let the battery cool down for about 30 minutes after use before starting to charge.

The active ventilation system maintains a stable temperature even during long fast charging sessions.

---

❓ FAQ – Teverun Tetra Adjustable Charger

⚡ Is this charger compatible with the Teverun Tetra?

Yes ✅, it is designed for 60V (16S lithium-ion) batteries equipping the Teverun Tetra.

🔌 Do I have to use both charging ports for 10A?

Yes. Beyond 6.5A, it is imperative to use the 2 charging ports via the LP16 extension cable to properly distribute the current.

💥 Does 10A mode damage the battery?

No, when the battery is in good condition and the current is correctly distributed across the two charging ports thanks to the dual LP16 extension cable.

🌡 Does the charger get hot?

Very little, thanks to the ventilated aluminum casing and active ventilation.

📦 Is the dual LP16 extension cable supplied?

Yes, the extension cable is supplied with the ultra-fast charger for Teverun Tetra. It is mandatory for any use above 6.5A.

*Non-contractual photos – Source’IT.
