Xiaomi SCOOTER 5 48V-54.6V 4A fast charger

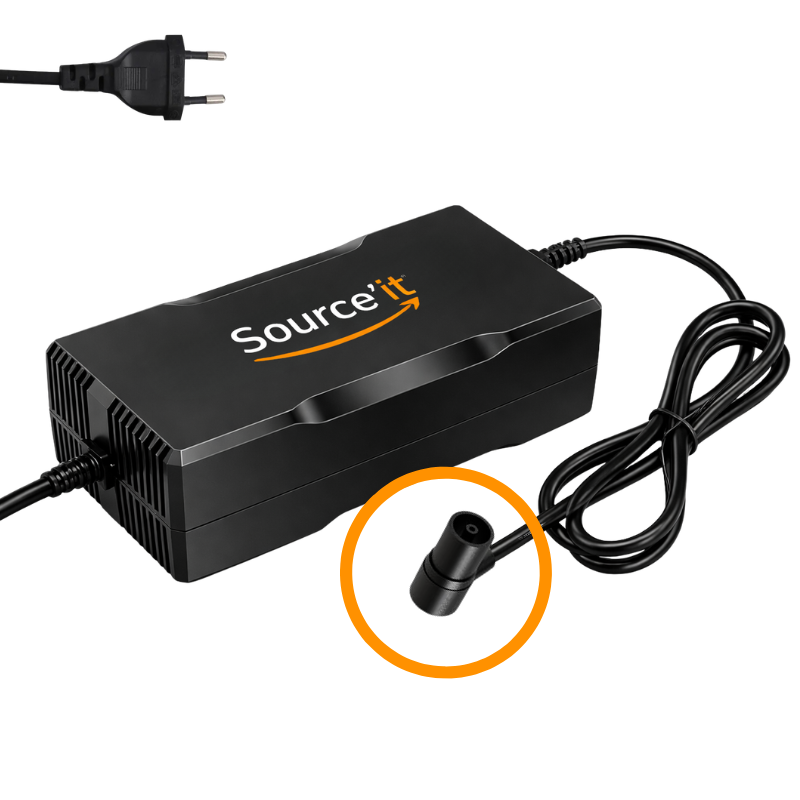

Xiaomi Scooter 5 Fast Charger – 48V (54.6V) 4A – With Active Ventilation

54.6V – 4A charger for Xiaomi Scooter 5 electric scooter (48V Li-ion – 13S battery). This ventilated model offers up to twice as fast charging as the standard charger while maintaining a controlled temperature thanks to its active cooling system. It is the ideal solution to reduce charging time while maintaining a stable, secure, and perfectly suited charge for the original battery.

---

🔧 Technical Specifications

• Output Voltage: 54.6V DC (end of charge for a 13S pack at 4.2V/cell)
• Charging Current: 4A (fast charge)

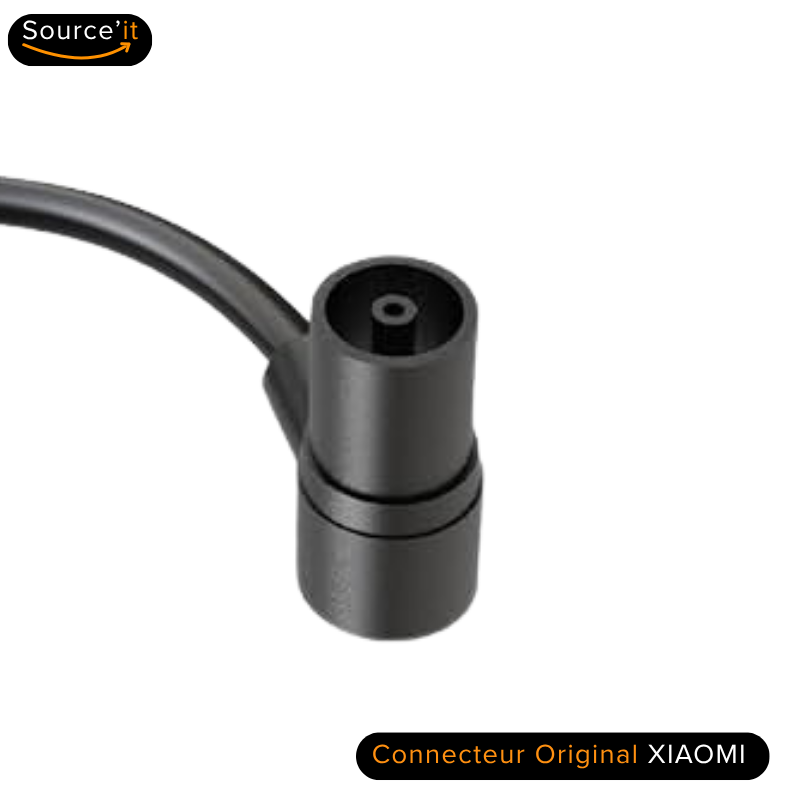

• Connector: Original Xiaomi Scooter 5 connector
• Cooling: Active ventilation – ventilated plastic casing
• Indicator: Red LED = charging / Green = charge complete
• Protections: Overvoltage, overcharge, overheating, short circuit, reverse polarity
• Compatibility: Xiaomi Scooter 5 (48V – 13S)
• Charging Time: Approximately 2h30 to 3h00 for the 477Wh battery

---

📌 Original 53.6V vs 54.6V: Why it changes everything

The original Xiaomi Scooter 5 charger is often limited to 53.6V. This choice helps limit the maximum charge during prolonged storage but has several drawbacks:

• At 53.6V, the battery does not reach 100% of its usable capacity.
• The BMS cannot perform a complete cell balancing.
• In the long term, this can lead to cell imbalance and a slight loss of autonomy.

Thanks to its 54.6V output voltage, this charger allows for:

• a full charge of the battery;
• optimal balancing of the lithium-ion pack;
• maximum autonomy with each charge;
• better cell stability over time.

Tip: Use the 54.6V charger before your rides. For prolonged storage, leave the battery between 30% and 60%.

---

⚡ Why choose the Source'IT 4A fast charger?

• Charging time reduced by approximately 50% compared to the standard 2A charger
• Active ventilation effectively limits heating
• Ventilated plastic casing promotes constant cooling
• Stable and perfectly regulated 54.6V charge
• Perfect compatibility with the Xiaomi Scooter 5
• Complete electronic protections
• Product individually tested before shipping
• 2-year warranty

---

❓ FAQ – Xiaomi Scooter 5 (48V – 54.6V 4A)

➡️ Is this charger compatible with my Xiaomi Scooter 5?

Yes. It is specially designed for the Xiaomi Scooter 5, equipped with a 48V – 477Wh battery and the original Xiaomi connector.

➡️ Is the 4A fast charger safe for the battery?

Yes. The 48V battery of the Xiaomi Scooter 5 perfectly accepts a 4A charge. The charger is fully regulated and ventilated to maintain a stable operating temperature.

➡️ What is the difference from the standard 2A charger?

The 2A charger allows a full charge in approximately 5h00 to 5h30.

The 4A charger reduces this time to approximately 2h30 to 3h00, while maintaining excellent reliability.

➡️ Does the charger heat up?

Very little. Thanks to its active ventilation, the temperature remains perfectly controlled throughout the charging process.

➡️ Compatibility

This charger is intended for the Xiaomi Scooter 5 with its original Xiaomi connector.

---

📦 Delivery & Warranty

• 🚚 Shipping within 24/48h in France and Europe
• 🛡️ 2-year warranty – each charger is individually tested before shipping
• 🔧 Technical assistance: contact@source-it.fr

*Non-contractual photos – Source'IT.
