PINK STYLE and PINK STYLE+ Electric Scooter Fast Charger 72V-84V 10A

Adjustable Charger for Pink Style / Pink Style+ Electric Scooter – 72V 3A to 10A with OLED Screen

The 72V – 3A to 10A adjustable charger for Pink Style electric scooters is designed for the Pink Style 72V 29Ah and Pink Style+ 72V 60Ah models, equipped with removable 72V lithium-NMC batteries. It offers adjustable, stable, and secure charging, perfectly suited to the 72V architecture of the Pink Style range.

When charging overnight and not in a hurry, you can charge slowly at 3A or 5A, and when you need to charge faster, you can go up to 10A. The ability to adapt the charging intensity also helps to preserve battery life in the long term.

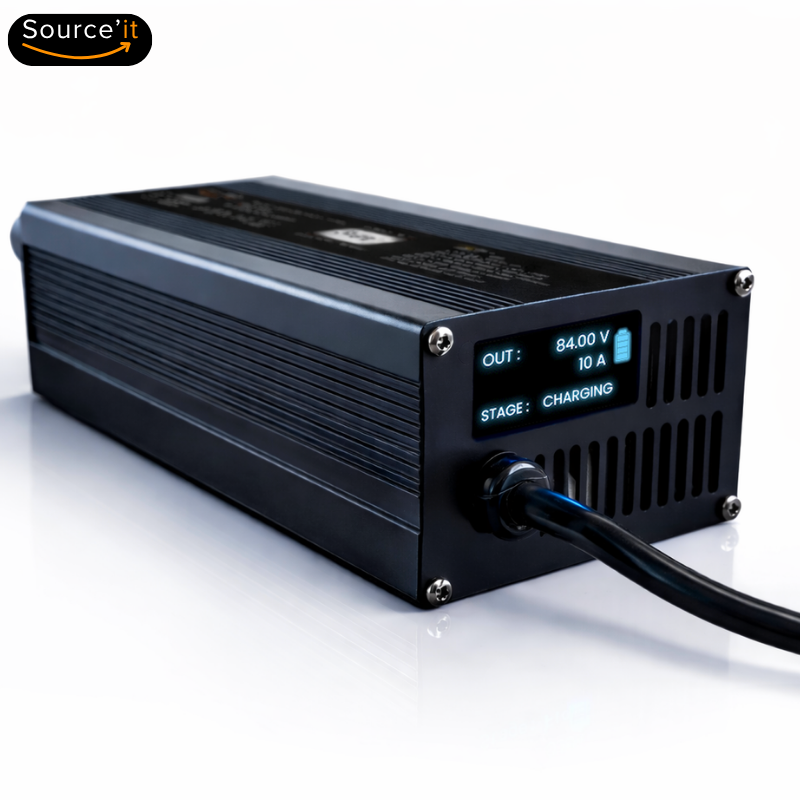

Thanks to its aluminum casing with active ventilation, its integrated OLED screen, and quality electronics, this charger delivers a regulated voltage of 84V while limiting overheating, thus improving its reliability and lifespan.

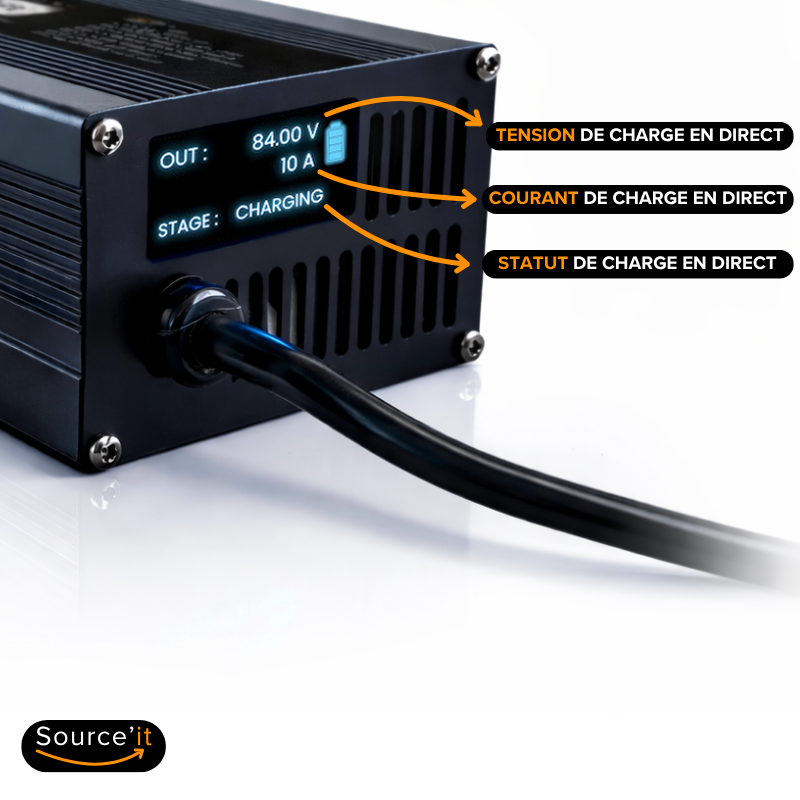

Its OLED screen displays in real-time the charged capacity, battery voltage, and selected current. The charging current is adjusted simply via a rotary knob.

🛵 Compatible Pink Scooters

• Pink Style – 1x 72V 29Ah lithium-NMC battery (≈ 2.1 kWh)
• Pink Style+ – 1x 72V 60Ah lithium-NMC battery (≈ 4.3 kWh)

All Pink Style models operate on a 72V (20S) architecture with a final charge voltage of 84V.

🔧 Technical Specifications

• Output Voltage: 84 V (72 V Li-ion battery – 20S)
• Charging Current: adjustable from 3A to 10A

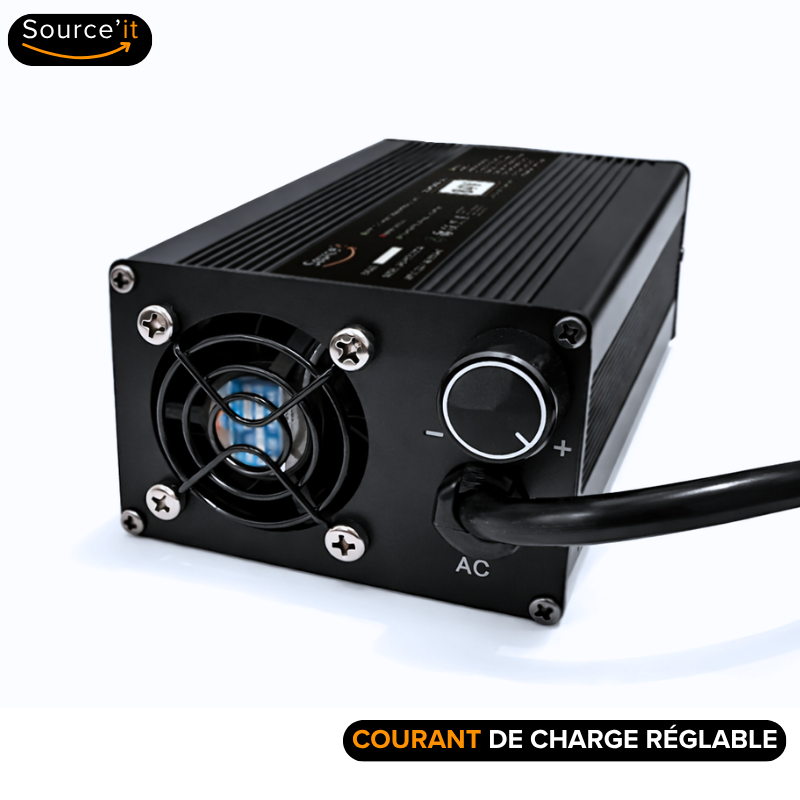

• Adjustment: rotary knob
• Display: OLED screen (capacity, voltage, current)
• Compatible Battery Type: 72V lithium-NMC
• Battery Capacity: 29 Ah or 60 Ah

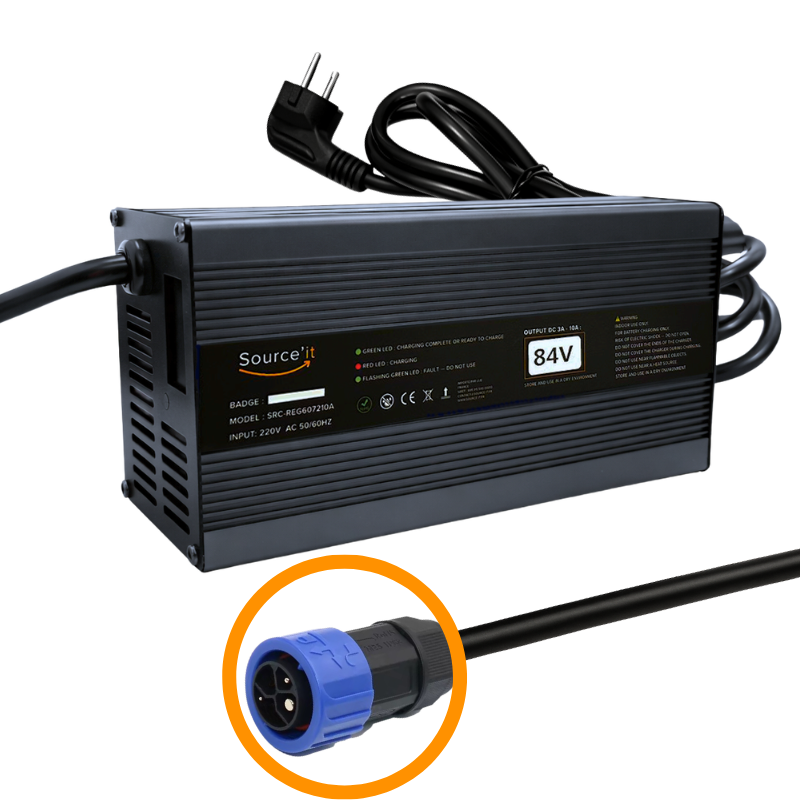

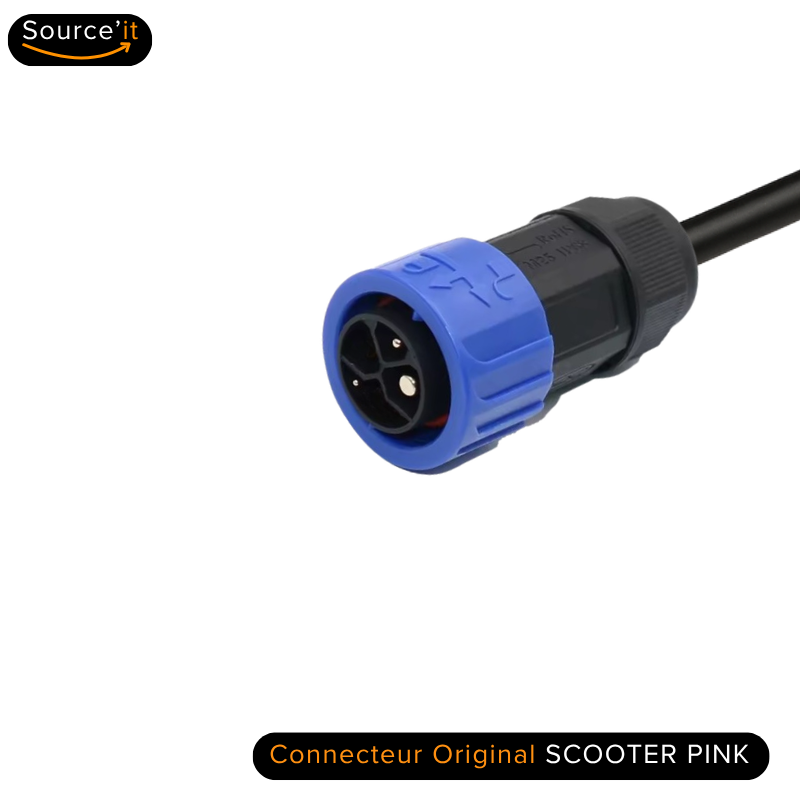

• Connector: original Pink connector
• Cooling: active ventilation – aluminum heat sink casing
• Integrated Protections: overcharge, short-circuit, reverse polarity, overheating

📌 Original 83V vs. 84V: what we observe on Pink Style and why it matters

On Pink Style / Pink Style+, the original charger is, in many cases, regulated around 82.8–83V, instead of the nominal voltage of 84V required by a 72V (20S) battery.

This choice may be intentional, but in practice:

• At 83V, the battery never reaches its full charge.
• The BMS does not reach the true end-of-charge voltage, which limits its balancing action.
• Charging at 84V allows the real capacity of the battery to be utilized.

Consequence #1: reduced usable capacity
With a charge capped at 83V, the battery constantly operates below its nominal potential. This typically represents 5 to 8% of unutilized capacity.

Consequence #2: incomplete cell balancing
The BMS balances the cells at the end of the charge, when they approach their maximum voltage. If charging stops too early, balancing remains partial, and a progressive imbalance may appear over time.

A Source'IT charger regulated at a true 84V allows the nominal end-of-charge voltage to be reached, the BMS to work within its normal balancing range, and 100% of the usable capacity to be exploited, without overcharging the battery.

Usage tip: charge to 100% just before riding. For prolonged storage, keep the battery between 30% and 60% instead.

⏱️ Charging Time

• Pink Style – 72V 29Ah
  → 3A: approx. 10h
  → 5A: approx. 6h
  → 10A: approx. 3h30
• Pink Style+ – 72V 60Ah
  → 3A: approx. 20h
  → 5A: approx. 12h
  → 10A: approx. 6h30

Charging times may vary depending on the discharge level, ambient temperature, and the BMS's final balancing phase.

💡 Why choose this 72V adjustable charger for Pink Style?

Adjustable charge → 3A, 5A, or 10A depending on your needs.
Battery preservation → gentle charging possible when not in a hurry.
Fast charging → up to 10A to reduce charging time.
OLED screen → live monitoring of capacity, voltage, and current.
Adjustment knob → simple and precise adjustment.
Compatible with Pink Style and Pink Style+ → 72V 29Ah and 60Ah batteries.
Efficient cooling → ventilated aluminum casing.

🔒 Safety and Compatibility

Is this charger safe for Pink Style batteries?
Yes. The 10A current is perfectly supported by the 72V lithium-NMC batteries of Pink Style and Pink Style+ scooters. The 84V regulation, active ventilation, and integrated protections guarantee reliable, stable, and durable charging. The 3A or 5A setting also allows for gentler daily charging.

FAQ – Pink Style / Pink Style+ 72V Adjustable Electric Scooter Charger

📩 Need advice or compatibility verification? Contact us, and we will guide you to the most suitable solution.

*Non-contractual photos.
