Xiaomi SCOOTER 5 MAX 48V-54.6V 2A Charger

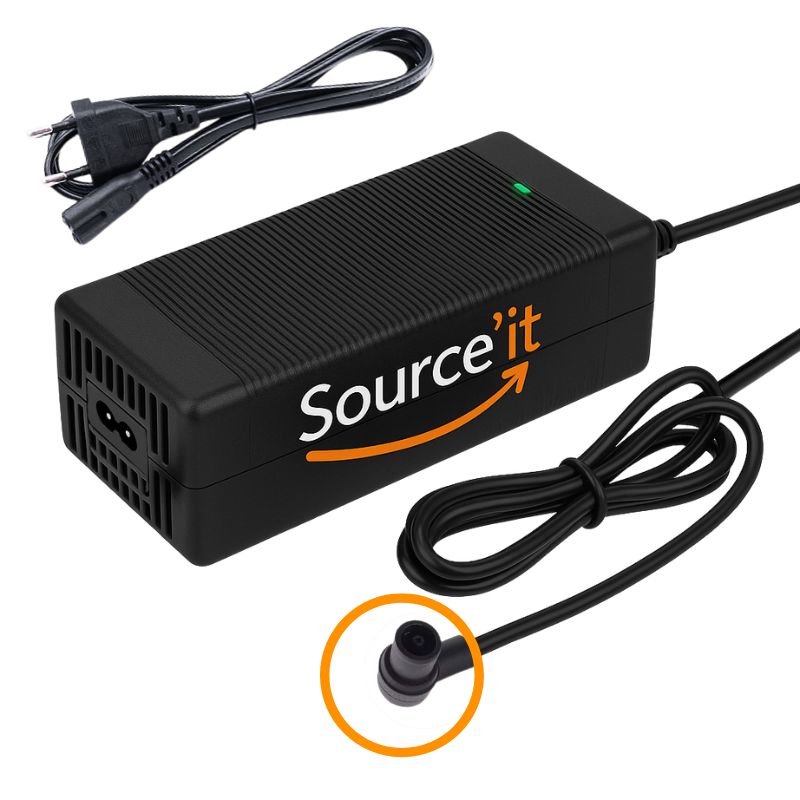

Xiaomi Scooter 5 MAX Charger – 48V (54.6V) 2A – Ventilated, specific Xiaomi Scooter 5 MAX connector

54.6V – 2A charger for Xiaomi Scooter 5 MAX electric scooter, equipped with a 48V Li-ion – 13S 477Wh battery. Designed for the 48V generation, it uses the specific Xiaomi Scooter 5 MAX connector and active fan cooling to maintain a stable charge and controlled temperature during prolonged cycles.

With its 2A charging power, this charger can recharge the 477Wh battery of the Xiaomi Scooter 5 MAX in approximately 5 hours. It is an ideal solution to replace the original charger or to have a second charger at home or at your workplace.

🔧 Technical Specifications

• Output Voltage: 54.6V DC (end of charge for a 13S pack at 4.2V/cell)
• Charging Current: 2A

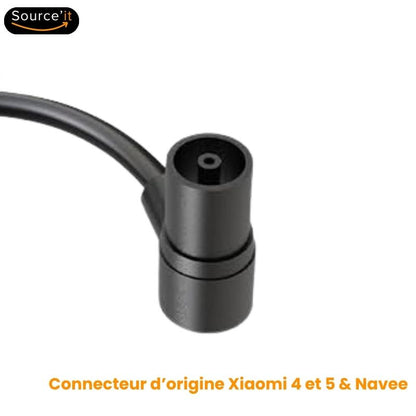

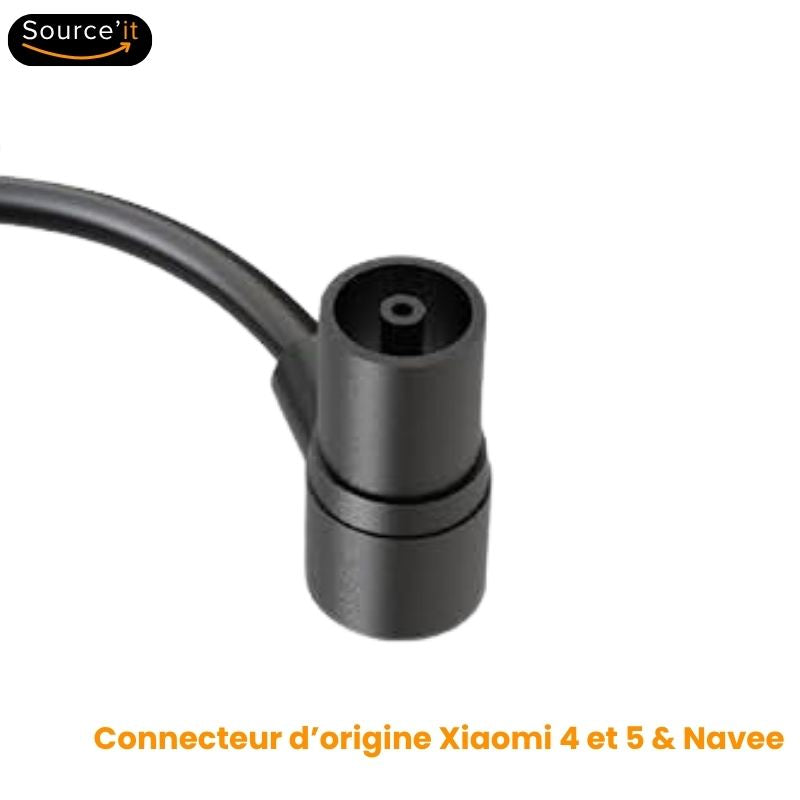

• Connector: Specific Xiaomi Scooter 5 MAX connector
• Compatible Battery: 48V – 477Wh
• Charging Time: approximately 5 hours
• Cooling: Active ventilation – ventilated plastic casing
• Indicator: Red LED = charging / Green = end of charge
• Protections: Overvoltage, overcharge, overheat, short-circuit, reverse polarity
• Compatibility: Xiaomi Electric Scooter 5 MAX (48V – 13S)

📌 Original 53.6V vs 54.6V: why it changes everything

On the Xiaomi Scooter 5 MAX electric scooter, the charger provided by the manufacturer is often set to ≈ 53.6V instead of 54.6V. The objective is to prevent a scooter stored for a long time immediately after charging from remaining at 100% state of charge.

In practice:

• Charging to 100% before riding is not a problem; it is mainly prolonged storage at 100% that accelerates battery aging.
• At 53.6V, you do not benefit from the full available battery capacity.
• Cell balancing by the BMS usually occurs in the upper part of the charge. Reaching the maximum voltage therefore promotes better pack balancing.

A 54.6V charger therefore allows you to take advantage of the maximum battery capacity when you need it and to promote cell balancing during full charges.

Tip: perform your full charges at 54.6V before riding. For prolonged storage, leave the battery between 30 and 60%.

⚡ Why choose the 2A Source'IT charger?

• Perfect compatibility with the Xiaomi Scooter 5 MAX
• Charging time of approximately 5 hours for the 477Wh battery
• Active ventilation effectively limiting heating
• Ventilated plastic casing promoting constant cooling
• Stable and perfectly regulated 54.6V charge
• Specific Xiaomi Scooter 5 MAX connector
• Complete electronic protections
• Product individually tested before shipping
• 2-year warranty

❓ FAQ – Xiaomi Scooter 5 MAX (48V – 54.6V 2A)

➡️ Is this charger compatible with my Xiaomi Scooter 5 MAX?

Yes. This charger is specially designed for the Xiaomi Scooter 5 MAX, equipped with a 48V – 477Wh battery and its specific Xiaomi connector.

➡️ What is the charging time for the Xiaomi Scooter 5 MAX?

With the standard 2A charger, allow approximately 5 hours to fully recharge the 477Wh battery of the Xiaomi Scooter 5 MAX.

➡️ 53.6V vs 54.6V: what's the difference?

53.6V slightly limits the maximum battery voltage, while 54.6V corresponds to the full charge voltage of a 48V – 13S lithium-ion pack. A full charge at 54.6V allows you to take advantage of the maximum available capacity and promotes cell balancing.

➡️ Can I switch between a 53.6V charger and this 54.6V charger?

Yes. You can use both chargers. To promote cell balancing, it is advisable to occasionally perform a full charge at 54.6V.

➡️ Is 2A suitable for the battery?

Yes. 2A provides a gentle and progressive charge perfectly suited to the 48V 477Wh battery of the Xiaomi Scooter 5 MAX.

➡️ Does the charger heat up during recharging?

Slight heating is normal. Thanks to its active ventilation, heat is effectively dissipated to maintain a stable temperature throughout the recharging process.

➡️ How to charge daily without damaging the battery?

You can perform a full charge before your trips. For prolonged storage of several days or weeks, it is preferable to keep the battery between 30 and 60%.

➡️ The LED turns green, should I unplug immediately?

No. The LED turning from red to green indicates that the main charge is complete. You can leave the charger plugged in a little longer occasionally to allow the BMS to finish the end-of-charge phase.

➡️ Compatibility: does this charger work with other models?

This model is intended for the Xiaomi Scooter 5 MAX with its specific connector. It is not compatible with older 36V (42V) generations or older Xiaomi connectors.
