Xiaomi SCOOTER 5 PRO electric scooter charger

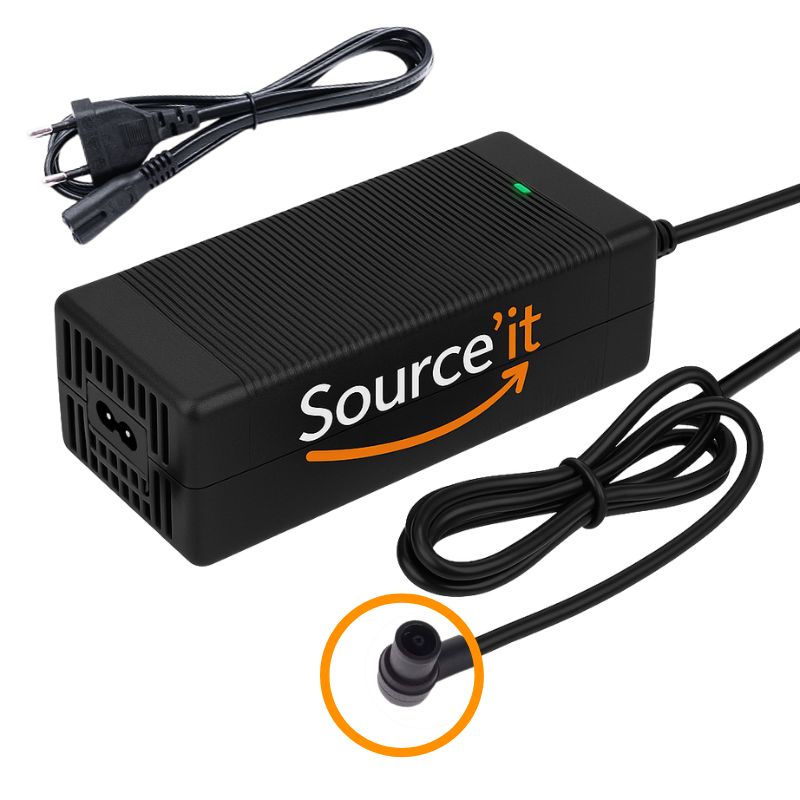

Xiaomi Scooter 5 Pro Charger – 48V (54.6V) 2A – Ventilated, specific Xiaomi Scooter 5 Pro connectors

54.6V – 2A charger for Xiaomi Scooter 5 Pro electric scooter ( 48V Li-ion battery – 13S ). Designed for the 48V generation, it uses the specific connector of the Xiaomi Scooter 5 Pro and active ventilation cooling to maintain a stable charge and controlled temperature during extended cycles.

---

🔧 Technical specifications

• Output voltage: 54.6V DC (end of charge of a 13S pack at 4.2V/cell)
• Charging current: 2A

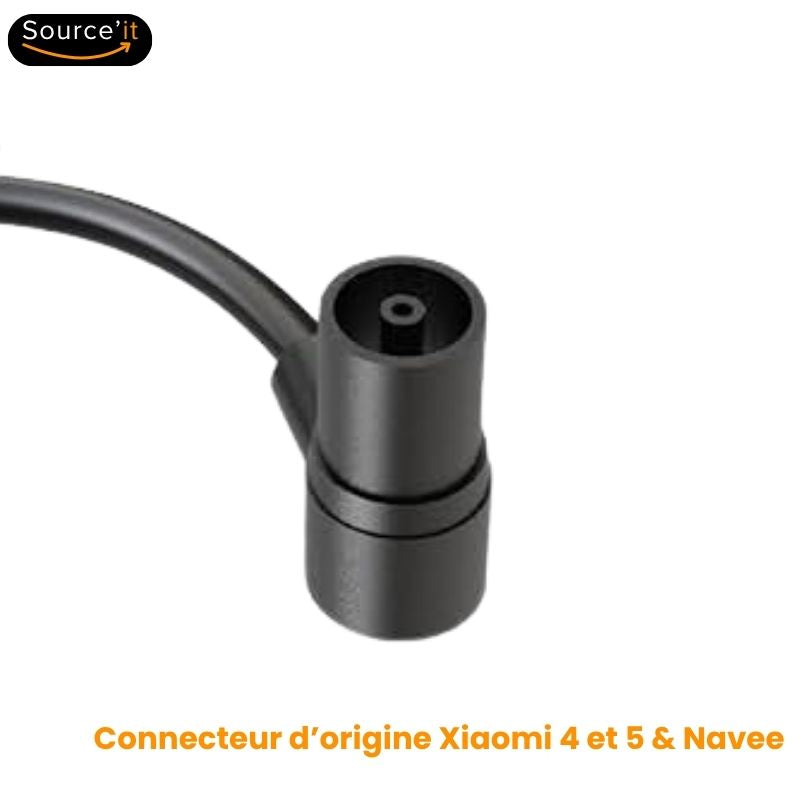

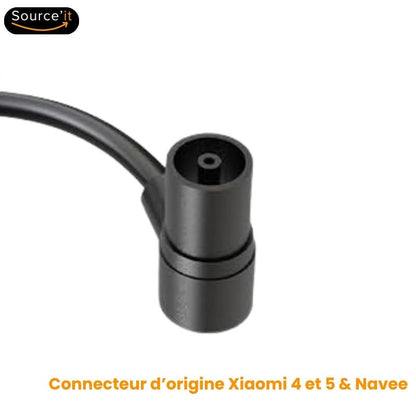

• Connections: Specific connector for Xiaomi Scooter 5 Pro
• Cooling: active ventilation – plastic housing
• Indicator: Red LED = charging / Green = end of charging
• Protections: overvoltage, overload, overheating, short circuit, polarity reversal
• Compatibility: Xiaomi Electric Scooter 5 Pro (48V – 13S)

---

📌 Original 53.6V vs. 54.6V: Why it Changes Everything

On the Xiaomi Scooter 5 Pro electric scooter , the original charger is often set to ≈ 53.6V instead of 54.6V. The goal: to prevent a battery that has remained full from being stored for too long. In practice:

• Charging to 100% to drive straight away is no problem; it's prolonged storage at 100% that wears out the battery.
• At 53.6V you never have 100% usable capacity .
• BMS only fully balance the cells near the maximum voltage ; without reaching 54.6V, the balancing remains partial and the cells become desynchronized over time, which can lead to cuts or a drop in performance.

A 54.6V charger allows you to recover 100% capacity , correctly rebalance the pack and stabilize the battery over time.

Tip: Complete your full charges to 54.6V before riding ; for storage, leave the battery between 30 and 60% .

---

❓ FAQ – Xiaomi Scooter 5 Pro (48V – 54.6V 2A)

➡️ 53.6V vs 54.6V: what’s the difference?

53.6V limits full charge to preserve long-term storage, but makes you lose useful capacity and prevents complete balancing of the BMS . Conversely, 54.6V guarantees full charge and optimal rebalancing of the cells.

➡️ Can I use both chargers?

Yes, occasionally. Do a full charge to 54.6V every 2–3 weeks and leave the charger connected for 30–60 minutes after the green light to maintain balance.

➡️ Is 2A suitable?

Yes. This is the standard current recommended for the Xiaomi 5 Pro's 48V batteries: gentle, safe, and long-lasting charging.

➡️ How to optimize loads?

Charge before each trip. For extended storage, maintain between 40 and 60%. Fully charge to 54.6V every 2–3 weeks to rebalance.

➡️ Should I unplug as soon as the LED turns green?

Not necessarily. The BMS continues balancing after green: leave the charger for an additional 30–60 min occasionally.

➡️ Typical charging time?

At 2A , count approximately capacity (Ah) ÷ 2 hours (e.g. 12 Ah ≈ 6 h). Balancing can add 30–45 min.

➡️ Compatibility

This model is intended for the Xiaomi Scooter 5 MAX with its specific connector . It is not compatible with older generations in 36V (42V) or with GEN1 connectors. However, it is compatible with the following models: Xiaomi 4 Pro 2nd Gen (GEN2) , Xiaomi 4 Ultra , Xiaomi 5 , Xiaomi 5 Pro , Navee S65 , Navee N65i , Navee S40 , Navee S60 , Navee ST3 Pro .

---

📦 Delivery & Warranty

• Shipping 24/48 hours (France & Europe)
• 2-year warranty – each charger is individually tested before shipping
• Compatibility support: contact@source-it.fr
