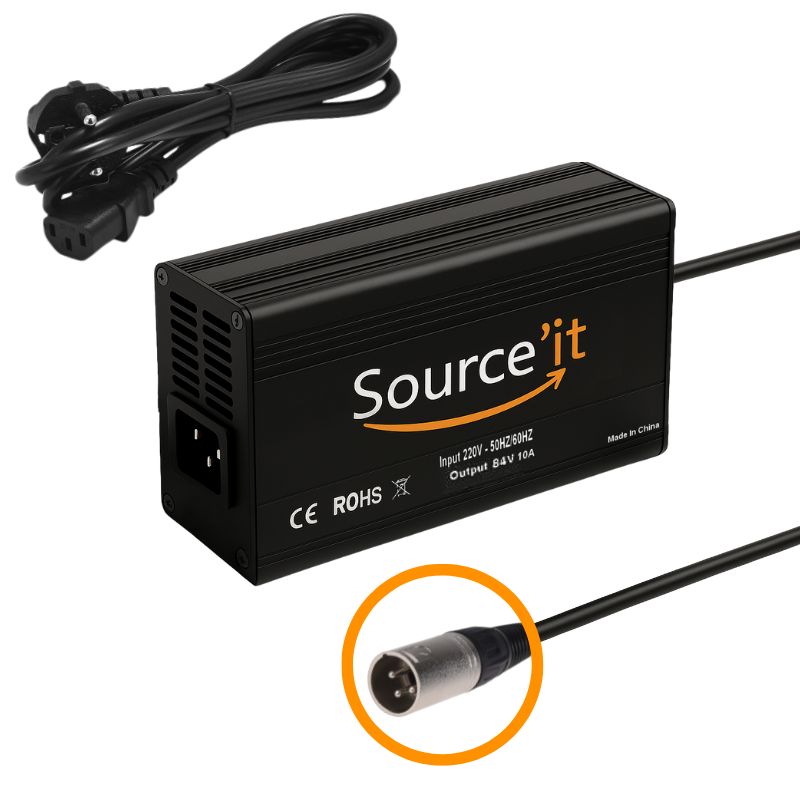

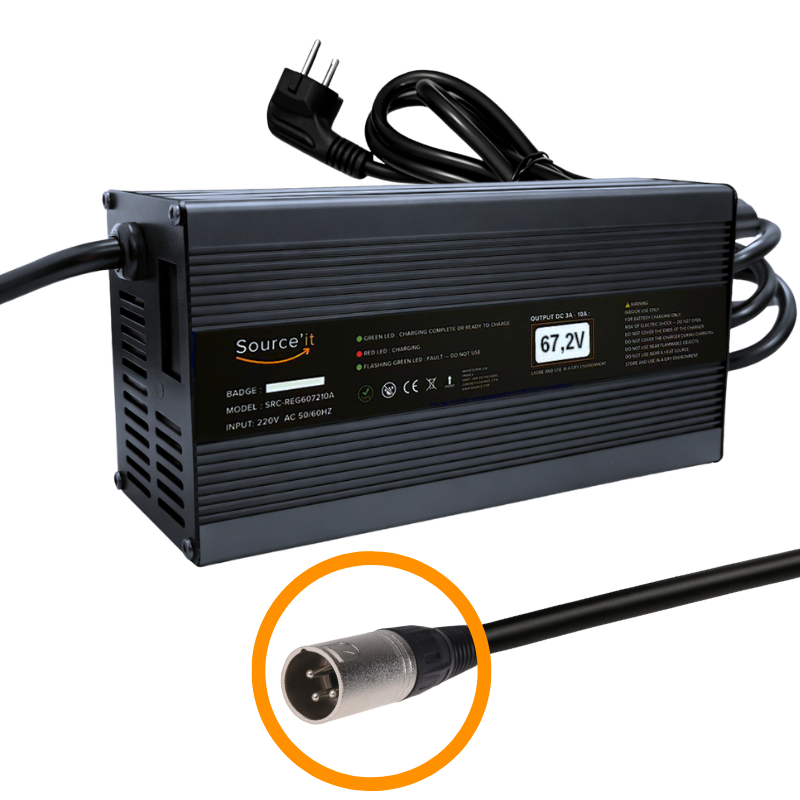

Ultra-fast 10A charger for VSETT 11+ – 60V (67.2V) or 72V (84V) – 3-pin XLR connector

This Source'IT 10A ultra-fast charger is compatible with all versions of the VSETT 11+ : 60V and 72V models. Select the variant corresponding to your battery: 67.2V for 60V versions, or 84V for 72V versions. Thanks to its ventilated aluminum casing , perfectly regulated voltage , and comprehensive protections , it drastically reduces charging time while preserving the battery.

---

Two variants available

➡️ 60V variant – 67.2V output : for VSETT 11+ 60V (31.2Ah / 42Ah batteries).
➡️ 72 V variant – 84 V output : for VSETT 11+ 72 V (31 Ah / 32 Ah / 35 Ah batteries).

Tip: Check your battery label: 67.2V fully charged = 60V version; 84V = 72V version.

---

🔧 Technical specifications

• Output voltage: 67.2 V or 84 V
• Charging current: 10 A (ultra-fast)

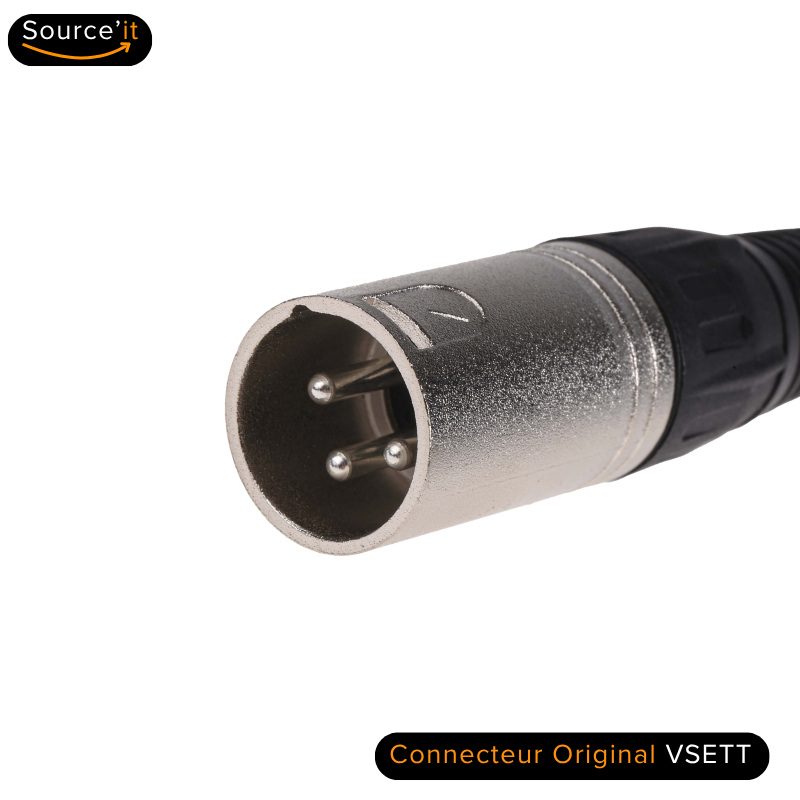

• Connector: 3-pin XLR (VSETT 11+ standard)

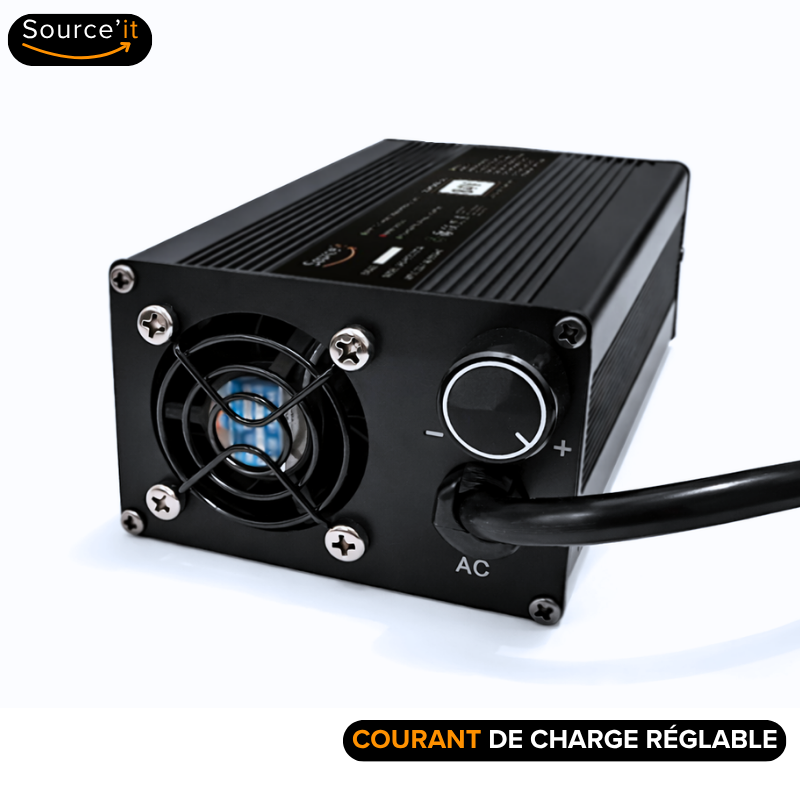

• Cooling: active ventilation – aluminum case with heat sink
• LED: red = charging / green = full battery
• Protections: overvoltage, overload, reverse polarity, short circuit, overheating
• Certification: CE – each unit is individually tested before shipment

---

⏱️ Indicative charging time (10A)

• VSETT 11+ 60 V – 31.2 Ah: approximately 3 hours 15 minutes .
• VSETT 11+ 60 V – 42 Ah: approximately 4:00 – 4:10 .
• VSETT 11+ 72 V – 31 Ah: approximately 3 hours .
• VSETT 11+ 72 V – 32 Ah: approximately 3 hours 10 minutes .
• VSETT 11+ 72 V – 35 Ah: approximately 3h30 .

These durations may vary depending on the temperature, condition and balance of the battery (CV phase at the end of charging).

---

⚠️ About dual charging

The VSETT 11+ has two XLR ports. When using a 10A charger, do not exceed a combined 15A to preserve battery life. If you want to increase the speed, use one 10A charger and one 5A charger (approximately 15A total) rather than two 10A chargers.

---

💨 Advantages of the Source'IT 10A charger

• ✅ Regulated voltage (67.2 V or 84 V) conforms to manufacturer's specifications
• ✅ Ultra-fast : time divided by ~2 vs 5A
• ✅ Active ventilation – continuously controlled temperature
• ✅ Robust aluminum casing and high heat dissipation
• ✅ Grade A components , individually tested, 2-year warranty

---

❓ FAQ – VSETT 11+ 10A Charger

➡️ Can I use the 84V variant on a 60V battery?

No ❌. Use only the variant corresponding to the nominal voltage of your battery.

➡️ Does 10A damage the battery?

No ✅, 10 A remains within the intended usage limits for the VSETT 11+. Active cooling and regulation protect the battery and charger.

➡️ Does this charger get very hot?

The ventilated aluminum casing efficiently dissipates heat: the temperature remains stable even during long sessions.

---

📦 Delivery & Warranty

• 🚚 Fast shipping: 24/48 hours – France & Europe
• 🛡️ Warranty: 2 years – new product, CE compliant

---

📩 Assistance

Need help choosing the right variant (60V or 72V) or for dual charging? 👉 Write to us at contact@source-it.fr and attach a photo of the battery label.

*Source'IT – French specialist in ventilated chargers for VSETT 11+.
