Arctic Leopard Electric Motorcycle Chargers

Discover our range of chargers for Arctic Leopard electric motorcycles, specifically designed for the Arctic Leopard EXE 800, Arctic Leopard EXE 880, Arctic Leopard EX 800, Arctic Leopard XE Pro R, Arctic Leopard XE Pro S, and Arctic Leopard XF Pro models.

Arctic Leopard electric motorcycles use high-capacity lithium-ion batteries of 72V / 74V or 90V depending on the model. These batteries require a charger perfectly matched to their voltage, capacity, and electronic management system.

Source'IT chargers are equipped with the original Arctic Leopard connector to allow direct connection to the motorcycle, without adapter or vehicle modification.

Several power ratings are available depending on the models, including adjustable fast and ultra-fast chargers. The charging current can thus be adapted to your use: a reduced intensity when you have enough time and a high power when you want to quickly recover your range.

🏍️ Arctic Leopard Electric Motorcycle Compatibility

Our chargers are available for the main Arctic Leopard electric motorcycles:

  • Arctic Leopard EXE 800 – 90V 58Ah battery – 100.8V adjustable charger from 3A to 15A
  • Arctic Leopard EXE 880 – 90V 75Ah battery – 100.8V adjustable charger from 3A to 15A
  • Arctic Leopard EX 800 – 74V (72V) 58Ah battery – Adjustable fast chargers 10A / 15A / 20A
  • Arctic Leopard XE Pro R – 74V (72V) 60Ah battery – Adjustable fast chargers 10A / 15A / 20A
  • Arctic Leopard XE Pro S – 74V (72V) 60Ah battery – Adjustable fast chargers 10A / 15A / 20A
  • Arctic Leopard XF Pro – 72V 35Ah battery – Adjustable fast chargers 10A / 15A

Each charger is specifically configured for the battery voltage of the corresponding Arctic Leopard model and equipped with the original Arctic Leopard connector.

⚠️ Beware of 86V Chargers Supplied with some 72V Arctic Leopard Models

Some Arctic Leopard electric motorcycles equipped with a 72V 20S configuration lithium-ion battery may be delivered with a charger advertised as 86V. We particularly draw attention to this point: for a conventional 20S lithium-ion battery using cells designed for a maximum charge of 4.20V per cell, the full charge voltage corresponds to 84.0V.

We have observed on some of these chargers a final charge voltage that can reach approximately 88.2V. Such a voltage corresponds to about 4.41V per cell on a 20S battery, which is higher than the usual maximum voltage of 4.20V per cell of a classic 20S lithium-ion battery.

In this configuration, repeated use of too high a charging voltage can lead to abnormal stress on the cells, an increase in their temperature, accelerated degradation of the battery, and a reduction in its lifespan. Significant overvoltage can also, depending on the exact characteristics of the cells and the BMS protections, pose a safety risk.

Therefore, for a standard 72V 20S lithium-ion battery, we prefer a final charge voltage properly regulated at 84V, corresponding to 4.20V per cell. This voltage allows for a full charge while remaining within the operating range intended for 4.20V lithium-ion cells.

Important: the charging voltage must always correspond to the chemistry and exact specifications of the cells used by the battery. Before replacing an Arctic Leopard charger with a different output voltage, it is recommended to check the characteristics of the battery and the BMS.

⚡ Arctic Leopard EXE 800 & EXE 880 Chargers – 90V Battery

The Arctic Leopard EXE 800 and EXE 880 use a 90V battery architecture requiring a maximum charging voltage of 100.8V.

  • Arctic Leopard EXE 800: 90V 58Ah battery
  • Arctic Leopard EXE 880: 90V 75Ah battery
  • Charger output voltage: 100.8V
  • Charging current: adjustable from 3A to 15A
  • Connector: original Arctic Leopard connector

The 100.8V 15A adjustable charger allows you to precisely adapt the recharging power to your needs. When you have enough time, you can select a lower intensity. When you want to significantly reduce charging time, you can gradually increase the current up to 15A.

This versatility allows you to use a single charger for both daily recharging at moderate intensity and for fast recharging when available time is limited.

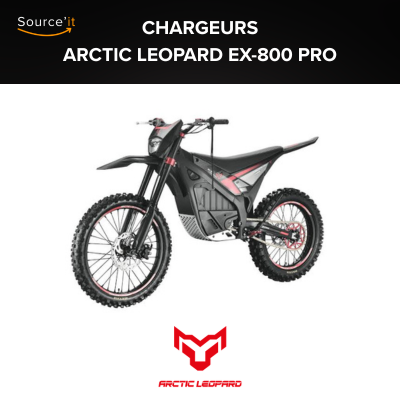

⚡ Arctic Leopard EX 800 Chargers – 74V / 72V 58Ah Battery

For the Arctic Leopard EX 800 equipped with its 74V (72V) 58Ah battery, we offer chargers specially configured to ensure stable and properly regulated recharging.

  • Battery: 74V (72V) 58Ah
  • Charging voltage: 84V for standard 20S lithium-ion battery
  • 10A adjustable fast charger
  • 15A adjustable fast charger
  • 20A adjustable ultra-fast charger
  • Connector: original Arctic Leopard connector

Adjustable versions allow you to reduce the intensity when you don't need maximum recharging, then increase the current when you want to quickly recover range.

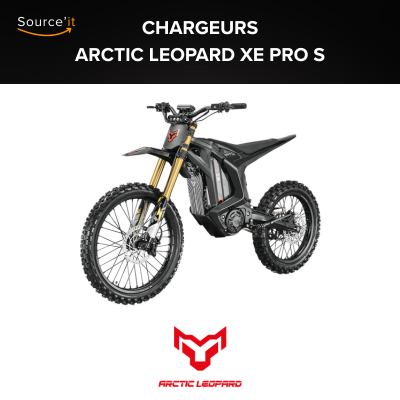

⚡ Arctic Leopard XE Pro R & XE Pro S Chargers – 74V / 72V 60Ah Battery

The Arctic Leopard XE Pro R and XE Pro S are equipped with a high-capacity 74V (72V) 60Ah battery. Several charging power ratings are available:

  • Battery: 74V (72V) 60Ah
  • Charging voltage: 84V for standard 20S lithium-ion battery
  • 10A adjustable fast charger
  • 15A adjustable fast charger
  • 20A adjustable ultra-fast charger
  • Connector: original Arctic Leopard connector

With a 60Ah battery, using a fast charger significantly reduces the motorcycle's downtime. Adjusting the intensity allows you to choose between recharging at moderate current and much faster recharging depending on your needs.

⚡ Arctic Leopard XF Pro Chargers – 72V 35Ah Battery

The Arctic Leopard XF Pro is equipped with a 72V 35Ah battery. We offer several recharging solutions adapted to this model:

  • Battery: 72V 35Ah
  • Charging voltage: 84V for standard 20S lithium-ion battery
  • 10A adjustable fast charger
  • 15A adjustable fast charger
  • Connector: original Arctic Leopard connector

The ability to adjust the current allows you to adapt recharging to your use and the time available before your next outing.

🎛️ Why choose an adjustable Arctic Leopard charger?

An adjustable Arctic Leopard charger allows you to choose the charging current rather than systematically using the maximum available power.

When the motorcycle can remain plugged in for several hours, you can select a reduced intensity. When you want to leave quickly, you can increase the current up to the maximum power provided by the charger.

This flexibility is particularly interesting for the high-capacity batteries of 35Ah, 58Ah, 60Ah, or 75Ah equipping the various Arctic Leopard electric motorcycles.

🔌 Original Arctic Leopard Connector

Our chargers are equipped with the original Arctic Leopard connector corresponding to the motorcycle's charging system.

The charger can thus be connected directly to the vehicle, without having to use an adapter or modify the electrical harness of your Arctic Leopard.

The charger configuration is adapted to the selected model to respect the charging voltage, connectivity, and battery characteristics.

🔒 Safety and Reliability

High-capacity batteries used by Arctic Leopard electric motorcycles require a stable and properly regulated power supply, especially when high charging currents are used.

Source'IT chargers feature active fan cooling to efficiently dissipate the heat generated during fast charging sessions.

They also integrate several electronic protections:

  • Overvoltage protection
  • Overcurrent protection
  • Overcharge protection
  • Short-circuit protection
  • Reverse polarity protection
  • Overheat protection

Particular attention is paid to output voltage regulation, an essential parameter for respecting the maximum voltage specified by the battery and its BMS.

💡 Why choose a Source'IT charger for your Arctic Leopard?

  • ✔️ Compatible with main Arctic Leopard electric motorcycles
  • ✔️ Original Arctic Leopard connector
  • ✔️ Models available for 72V / 74V and 90V batteries
  • ✔️ Precisely regulated output voltage
  • ✔️ Fast and ultra-fast chargers
  • ✔️ Adjustable charging current
  • ✔️ Up to 15A for compatible 90V models
  • ✔️ Up to 20A for compatible 72V / 74V models
  • ✔️ Active ventilation to control temperature
  • ✔️ Complete electronic protections
  • ✔️ Individually tested product before shipment
  • ✔️ 2-year warranty

❓ FAQ – Arctic Leopard Electric Motorcycle Chargers

➡️ Which charger for an Arctic Leopard EXE 800?

The Arctic Leopard EXE 800 equipped with its 90V 58Ah battery uses a charger delivering 100.8V. We offer an adjustable version from 3A to 15A with an original Arctic Leopard connector.

➡️ Which charger for an Arctic Leopard EXE 880?

The Arctic Leopard EXE 880 equipped with its 90V 75Ah battery is compatible with our 100.8V adjustable charger from 3A to 15A.

➡️ Why are some 72V Arctic Leopard models delivered with a charger advertised as 86V?

Some versions may be supplied with a charger presenting a voltage higher than that usually used for a 72V 20S lithium-ion battery. For a 20S battery using conventional lithium-ion cells limited to 4.20V per cell, the full charge voltage is 84V. It is therefore essential to check the voltage actually intended by the cell manufacturer and the BMS before using a charger delivering a higher voltage.

➡️ Can a charger reaching 88.2V be used on a 72V 20S battery?

On a conventional 20S lithium-ion battery limited to 4.20V per cell, a voltage of 88.2V would represent approximately 4.41V per cell. This value is higher than the usual maximum voltage of these cells and therefore should not be considered equivalent to a standard charge at 84V. Excessive voltage can accelerate cell aging and pose a safety risk.

➡️ Which charger for an Arctic Leopard EX 800?

For the Arctic Leopard EX 800 74V (72V) 58Ah, several power ratings are available: 10A, 15A, and up to 20A depending on the chosen version.

➡️ Which charger for an Arctic Leopard XE Pro R or XE Pro S?

The Arctic Leopard XE Pro R and XE Pro S equipped with a 74V (72V) 60Ah battery can use our 10A, 15A, or 20A adjustable chargers.

➡️ Which charger for an Arctic Leopard XF Pro?

The Arctic Leopard XF Pro 72V 35Ah can be equipped with a 10A or 15A adjustable charger with an original Arctic Leopard connector.

➡️ What is the purpose of intensity adjustment?

The adjustment allows you to adapt the charging current to the time you have available. You can select a reduced intensity when you are not in a hurry and increase the power when you want to quickly recover range.

➡️ Do I need an adapter to plug in the charger?

No. Our models are directly equipped with the original Arctic Leopard connector corresponding to the selected vehicle.

➡️ Do fast chargers heat up?

A certain amount of heat generation is normal during high-power recharging. The chargers have active ventilation to efficiently dissipate this heat and maintain a stable operating temperature.

📦 Delivery & Warranty

All our chargers for Arctic Leopard electric motorcycles benefit from a 2-year warranty and are individually tested before shipment.

  • 🚚 Fast shipping in France and Europe
  • 🛡️ 2-year warranty
  • 🔧 Chargers individually tested before shipment
  • 🔌 Original Arctic Leopard connector

📩 Need advice?

Need help choosing your Arctic Leopard EXE 800, EXE 880, EX 800, XE Pro R, XE Pro S, or XF Pro charger?

Contact Source'IT at contact@source-it.fr so we can verify your model, battery, and guide you to the most suitable charger.
